Application fields

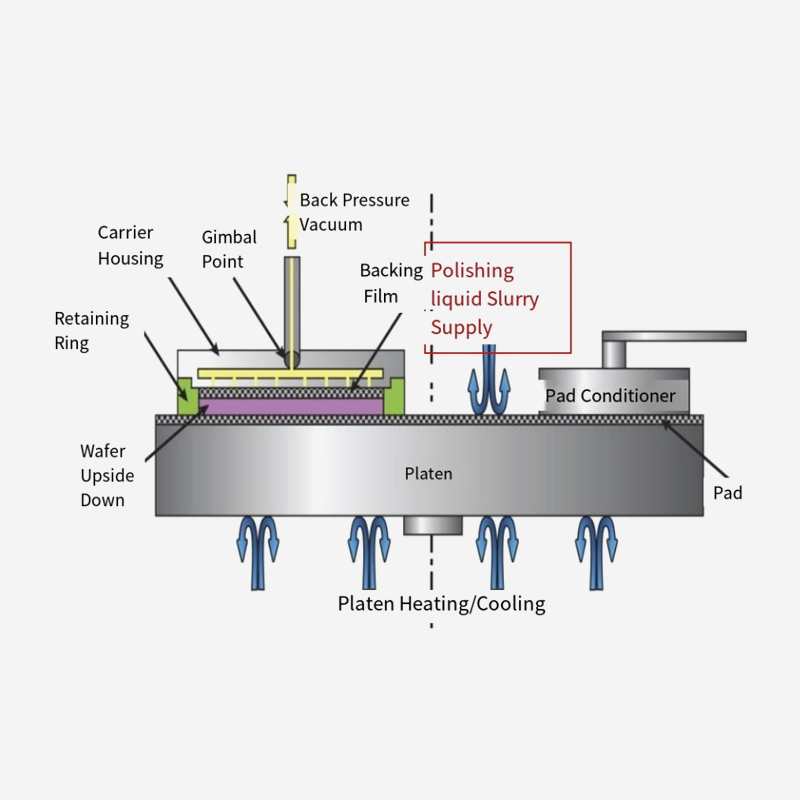

General semiconductor, wafer substrate, STI, ILD, barrier layer, copper polishing, etc.
Product features
Nanoparticles, normal distribution, low impurities.
Good dispersion and good suspension properties.
The wafers and integrated circuits after polishing have low scratch marks, good surface roughness and are easy to clean.
Product specifications
Cerium oxide polishing liquid
Silicon dioxide polishing liquid
Aluminum oxide polishing liquid
Customized according to the customer's usage requirements.
CMP polishing slurry product - CeO2

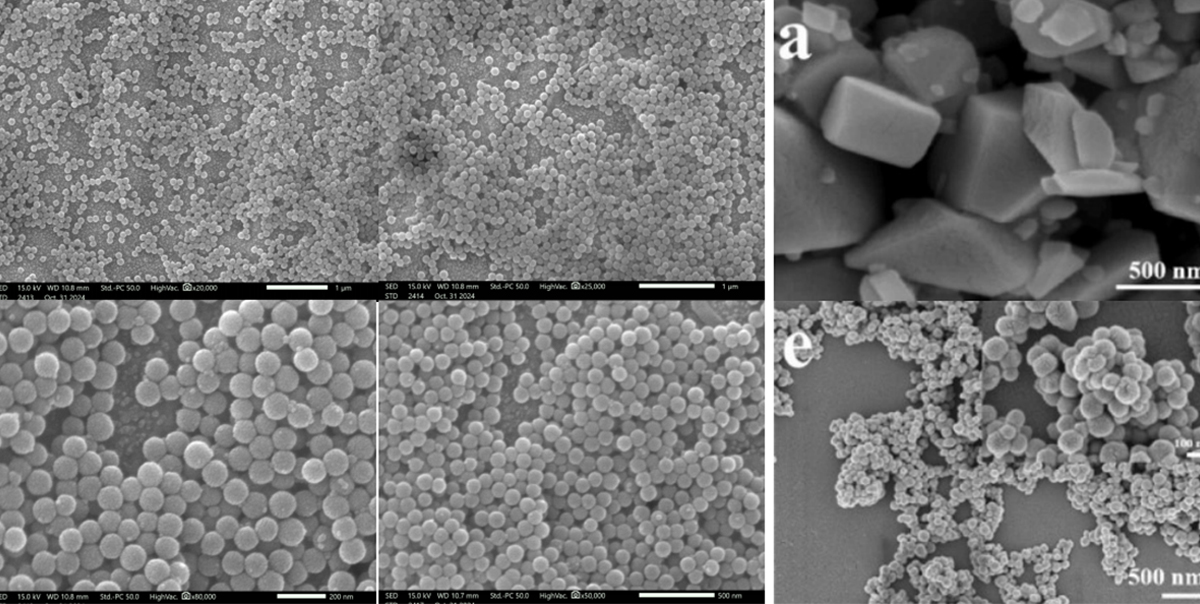

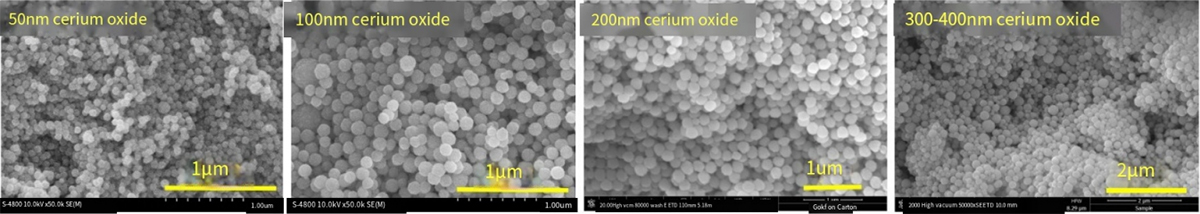

Nanometer CeO2 products of different size specifications, including 50nm, 100nm, 200nm and 300-400nm.

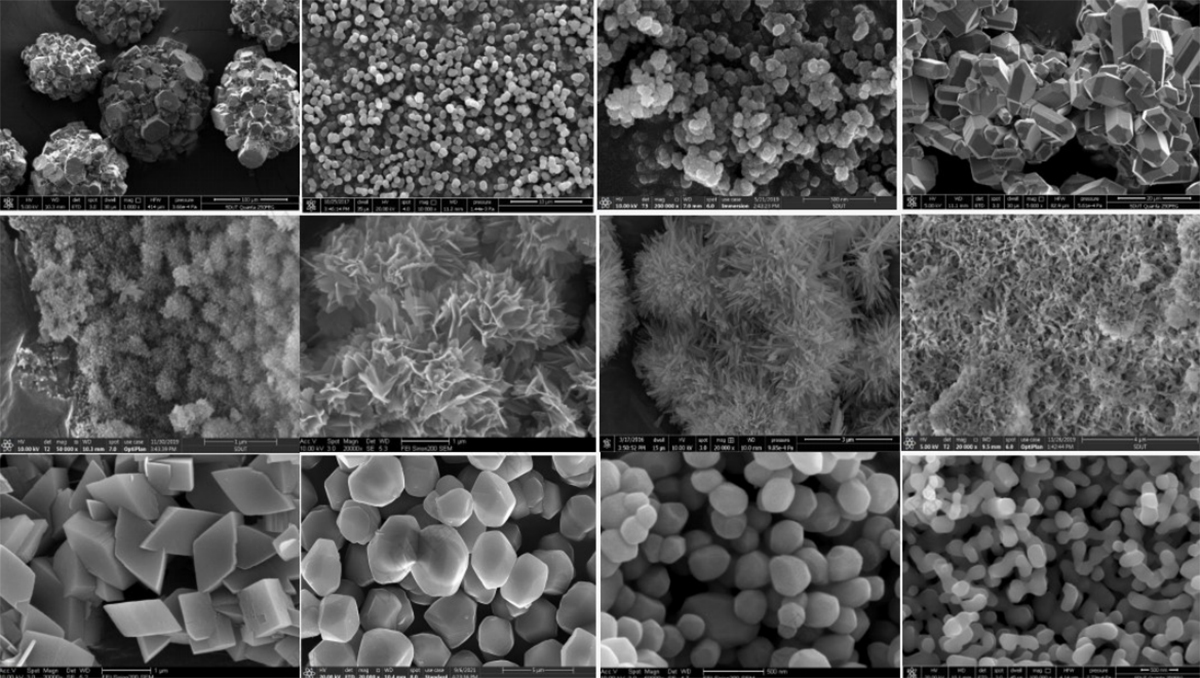

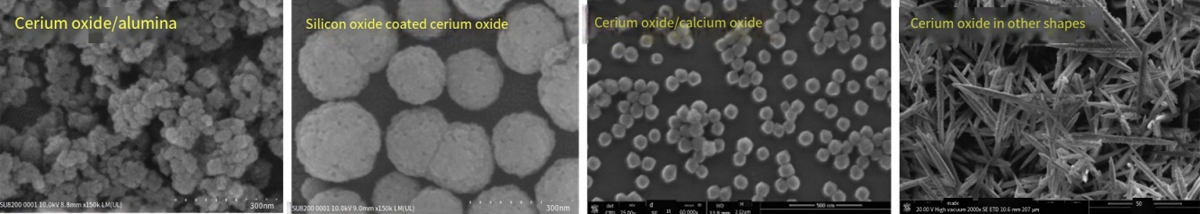

Modified nano CeO2 series products
CMP polishing slurry products - SiO2 + Fe3O4
CMP polishing slurry product - Al2O3

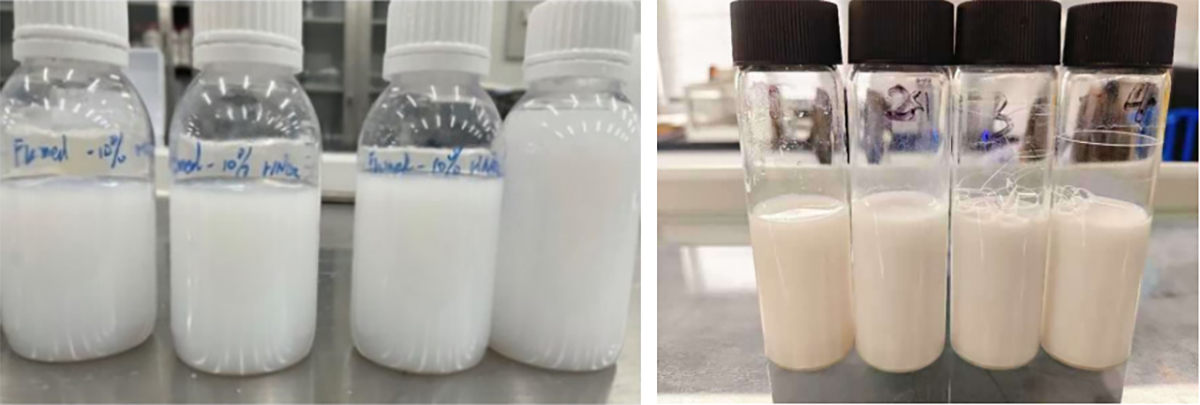

CMP polishing liquid products - dispersion and suspension control
| Test item (1% solid content dispersion) | Unit | Measured value | |
| Particle size distribution | Dmax | um | ≤0.4 |
| D50 | um | 0.12-0.19 | |
| Impurity ions | Na | ppm | <1 |
| K | ppm | <1 | |
| Al | ppm | <1 | |
| Fe | ppm | <1 | |
| Cr | ppm | <1 | |
| Mg | ppm | <1 | |
| Ni | ppm | <1 | |
| Cu | ppm | <1 | |
| Zn | ppm | <1 | |
| 20%CeO₂ | ||||||
| Dispersant | Dispersant OBS | Dispersant CMC-Na | ||||
| Dispersant concentration | 0.10% | 0.20% | 0.40% | 0.50% | 1.0% | 2.0% |
| pH | zeta potential | |||||
| 7 | -44.8 | -45 | -43.7 | -45.4 | -43.2 | -42.2 |
| 6 | -41.7 | -42.9 | -39 | -37.8 | -41.8 | -39.4 |
| 5 | -33.2 | -36 | -37.4 | -29.2 | -28.7 | -27.7 |
| 4 | -29.7 | -28 | -28.8 | -25.7 | -26.9 | -30.8 |
| 3 | -25.4 | -20.9 | -25.3 | -13.3 | -24.9 | -17.9 |
