How do you select the right vacuum reducing adapter for a non‑standard pipe connection?

Selecting the correct vacuum reducing adapter for non‑standard pipe connections requires systematic evaluation of multiple factors, including flange standards, diameter transitions, pressure requirements, temperature constraints, and material compatibility. Unlike standard connections that follow established specifications, non‑standard applications often demand customised solutions that balance performance, cost, and availability. SUNFUN Group has been manufacturing vacuum components since 1986, applying precision engineering and quality control to produce reducing adapters that meet the requirements of both standard and non‑standard applications.

Product Category 1: Concentric Vacuum Reducing Flanges

Definition and Positioning

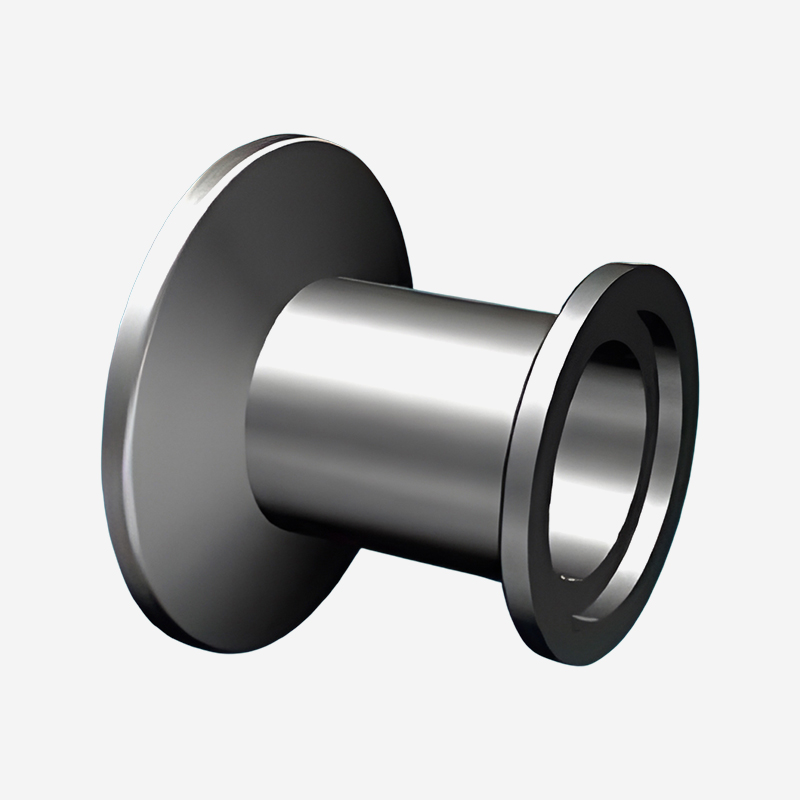

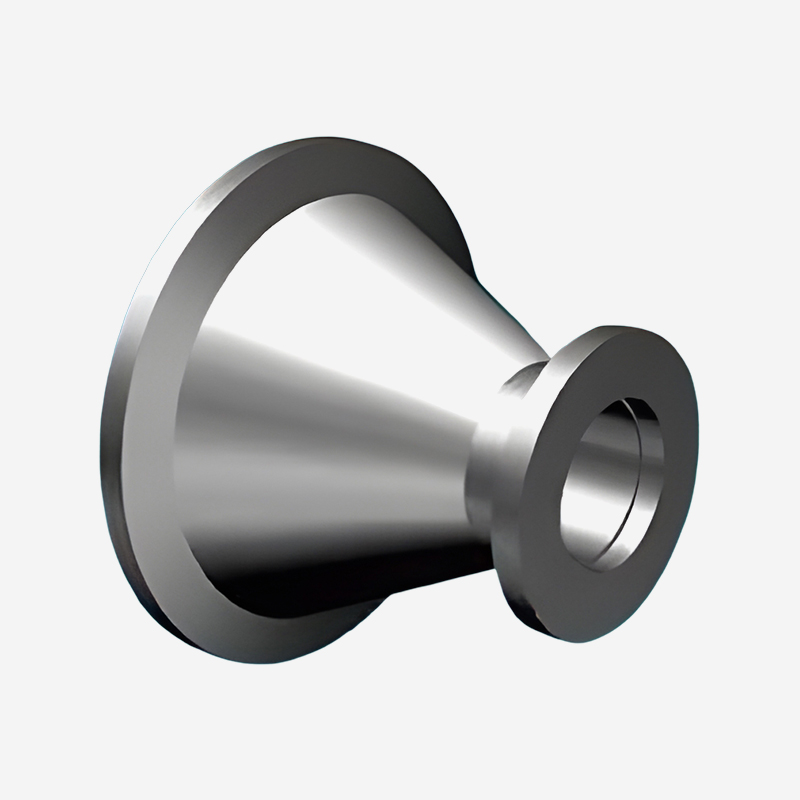

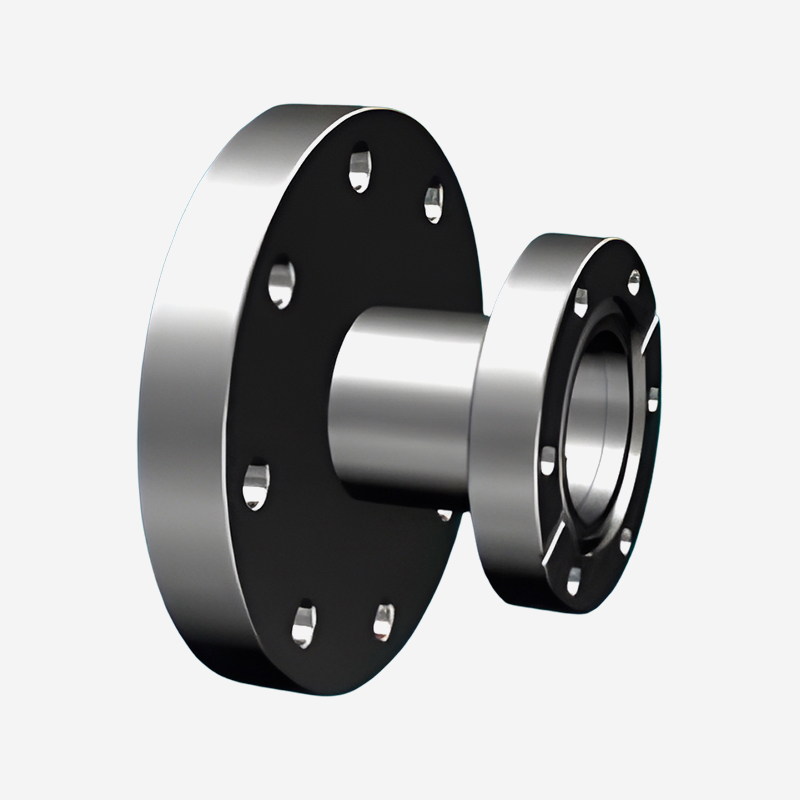

Concentric vacuum reducing flanges are designed to transition between two pipe diameters where the centrelines of both pipes are aligned. This configuration is the most common type of reducing flange, used when straight‑line flow paths are maintained between different diameter sections. SUNFUN Group manufactures concentric reducing flanges across multiple flange standards—including KF, ISO, CF, and JIS—ensuring compatibility with diverse vacuum systems. These components serve as vacuum reducer flange solutions that maintain system integrity while accommodating diameter transitions.

Core Functions and Technical Features

The primary function of concentric reducing flanges is to provide a leak‑tight transition between vacuum pipes of different diameters while maintaining the centreline alignment. The flange faces on each end are manufactured to the dimensional requirements of the respective flange standard—including bolt hole patterns, sealing surface geometry, and surface finish specifications. The transition section is machined to create a smooth internal profile that minimizes flow restriction and turbulence while maintaining structural integrity under vacuum conditions.

Surface finish requirements for reducing flanges are identical to those for standard flanges: the sealing faces must achieve roughness values appropriate for the sealing method specified. SUNFUN Group's manufacturing processes include precision turning to achieve the dimensional accuracy required for both flange faces and the transition section. Our 0.001‑mm precision machining ensures that the flange faces meet the surface finish and dimensional requirements of each applicable standard. This precision is critical for vacuum reducing adapter performance in demanding applications.

Typical Application Scenarios

Concentric reducing flanges are used whenever vacuum systems must transition between different pipe diameters. In semiconductor manufacturing, reducing flanges connect process chambers with larger ports to smaller diameter piping systems. Research laboratories frequently use reducing flanges to adapt equipment with different connection sizes. Industrial vacuum systems employ reducing flanges to transition between pump inlet sizes and process chamber connections.

Differentiation from Other Reducer Types

Concentric reducing flanges are distinguished from eccentric reducers by the alignment of pipe centreline. The concentric configuration maintains the flow path centreline through the transition, simplifying system alignment and reducing the need for additional support hardware.

SUNFUN Group's Manufacturing Capabilities

SUNFUN Group's concentric reducing flange production applies precision machining and quality control. Our fully intelligent process management maintains energy consumption within 0.1 % across manufacturing operations. Through our open innovation ecosystem, established in partnership with governments, enterprises, universities, and institutions, we maintain knowledge of evolving flange standards and application requirements for vacuum reducing flange components.

Concentric Reducer Specifications

• Standards available: KF, ISO, CF, JIS, and custom
• Diameter range: From DN 10 to DN 300 (standard)
• Surface finish: Ra ≤ 1.6 µm (elastomer) / Ra ≤ 0.8 µm (UHV)
• Materials: 304/316L stainless steel standard
• Alignment: Concentric (centreline maintained)
• Quality: Dimensional verification and leak testing

Product Category 2: Eccentric Vacuum Reducing Adapters

Definition and Positioning

Eccentric vacuum reducing adapters are designed to transition between pipe diameters while offsetting the centreline alignment. This configuration is used when system layout requires the bottom of the pipe to remain level—typical in horizontal piping where condensate or particles may accumulate. SUNFUN Group's eccentric reducing adapters are manufactured to the same quality standards as concentric designs, with dimensions and surface finishes appropriate for vacuum applications.

Core Functions and Technical Features

The primary function of eccentric reducing adapters is to provide leak‑tight vacuum connections while accommodating an offset in pipe centreline. This configuration is particularly valuable in horizontal pipe runs where maintaining a level bottom surface prevents accumulation of debris or condensate that could affect vacuum performance. Eccentric reducers are manufactured with the same flange face dimensions and surface finish requirements as standard flanges, with the transition section engineered to maintain structural integrity under vacuum.

SUNFUN Group's eccentric reducing adapters are produced with precision‑machined flange faces that meet the dimensional requirements of the specified standard. The eccentric offset is achieved through the transition section geometry, with dimensions determined by the specific diameter transition and offset requirement. Our in‑house institute provides engineering support for custom eccentric configurations that address specific system layouts. These capabilities ensure that vacuum reducing adaptor products meet application requirements while maintaining vacuum performance.

Typical Application Scenarios

Eccentric reducing adapters are specified in vacuum systems where pipe routing requires offset transitions. Semiconductor manufacturing facilities with complex piping layouts frequently specify eccentric reducers for horizontal runs where level bottom alignment is critical. Research vacuum systems that handle condensable gases use eccentric reducers to prevent liquid accumulation in low points.

Differentiation from Concentric Reducers

Eccentric reducing adapters differ from concentric designs in their centreline alignment. The eccentric configuration provides a level bottom surface that is important for drainage in horizontal applications, while concentric designs are used where centreline alignment is required for system layout.

SUNFUN Group's Manufacturing Capabilities

SUNFUN Group's eccentric reducing adapter production applies precision machining to achieve the required dimensions and surface finishes. Our accredited technology enterprise status—demonstrated through completion of national‑level R&D tasks and projects commissioned by the NDRC, MOST, and MIIT—supports quality systems for custom vacuum reducer flange products.

Eccentric Reducer Specifications

• Standards available: KF, ISO, CF, JIS, and custom
• Diameter range: From DN 10 to DN 300 (standard)
• Surface finish: Ra ≤ 1.6 µm (elastomer) / Ra ≤ 0.8 µm (UHV)
• Materials: 304/316L stainless steel standard
• Alignment: Eccentric (bottom‑level or top‑level)
• Applications: Horizontal pipe runs requiring drainage

Product Category 3: Custom Vacuum Reducing Adapters for Non‑Standard Connections

Definition and Positioning

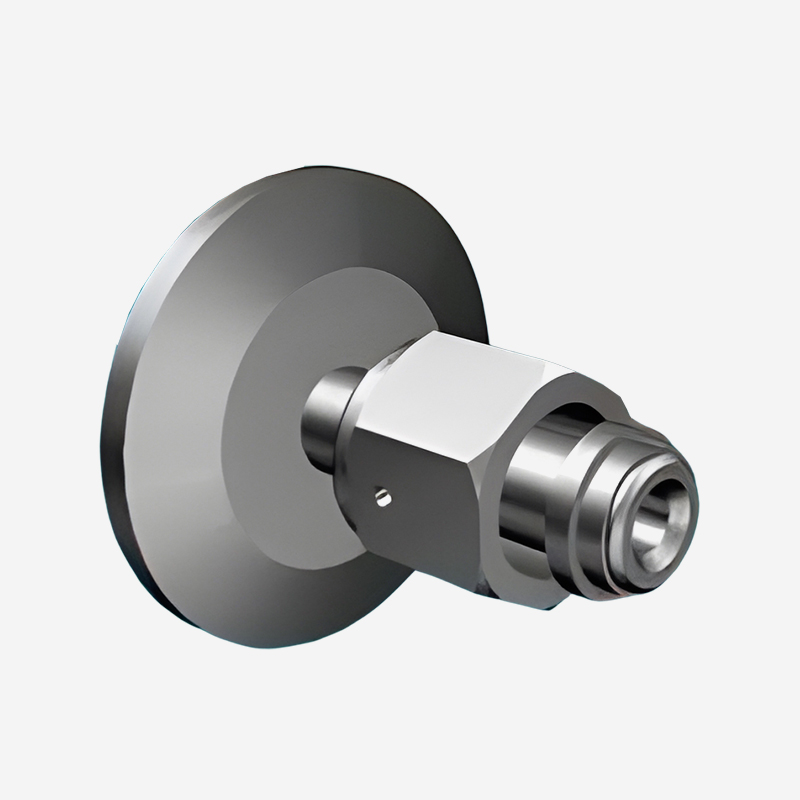

Custom vacuum reducing adapters are engineered solutions for non‑standard connection requirements—including transitions between different flange standards, unusual diameter combinations, or non‑standard sealing configurations. SUNFUN Group's custom adapters are designed to meet specific application requirements that cannot be satisfied by standard catalogue products. These components serve as vacuum reducing adapter solutions for challenging connection requirements.

Core Functions and Technical Features

Custom reducing adapters are designed to address specific connection requirements where standard solutions are not available. This may include transitions between flange standards, diameter combinations not available in standard products, or specific dimensional requirements for system layout. Each custom adapter is engineered to the specific requirements of the application, with dimensions and configurations selected to meet system requirements.

The design process for custom reducing adapters includes verifying flange face dimensions and surface finish requirements for both standards, confirming seal compatibility, and ensuring alignment requirements are met. SUNFUN Group's in‑house institute provides engineering support for custom designs, ensuring that the final product meets both the dimensional requirements and vacuum performance specifications of the application. This capability supports the supply of vacuum reducing flange solutions for non‑standard connections.

Typical Application Scenarios

Custom reducing adapters are required when vacuum systems integrate components manufactured to different standards or when existing piping systems require modifications. Semiconductor fabrication facilities often require custom adapters to connect equipment from different vendors who may have specified different flange standards. Research laboratories with older equipment may need custom adapters to interface with new systems. Industrial vacuum systems assembled from components with different standards frequently require custom adapters for system integration.

Differentiation from Standard Products

Custom reducing adapters differ from standard products in their specific engineering for each application. Standard products are manufactured to established specifications, while custom adapters are designed to meet the specific requirements of each application. This customisation involves design and manufacturing processes specific to each requirement.

SUNFUN Group's Custom Design Capabilities

SUNFUN Group provides custom reducing adapter design and manufacturing, leveraging our precision capabilities and engineering expertise. Our in‑house institute and talent academy provide technical support for custom designs. Our open innovation ecosystem, established in partnership with universities and research institutions, supports the development of custom solutions for challenging applications. Our accredited technology enterprise status ensures quality systems for custom products.

Key Specifications Comparison

Selecting the right vacuum reducing adapter for non‑standard connections requires evaluation of application requirements, system layout, and performance expectations. SUNFUN Group provides reducing adapters across the full range of configurations—concentric, eccentric, and custom designs—applying precision manufacturing and quality control to meet the requirements of semiconductor, research, and industrial vacuum applications. Our four decades of experience, combined with accredited technology enterprise status and an in‑house institute and talent academy, support the production of vacuum reducing flange solutions that meet the most demanding connection requirements. Through our open innovation ecosystem, established in partnership with governments, enterprises, universities, and institutions, SUNFUN Group maintains the technical expertise required for non‑standard vacuum connection solutions.

Frequently Asked Questions

Q1: What is the difference between concentric and eccentric reducing flanges?

Concentric reducing flanges maintain centreline alignment through the transition, suitable for vertical or straight‑line applications. Eccentric reducing flanges offset the centreline, providing a level bottom surface that is important for drainage in horizontal pipe runs. Both types serve as vacuum reducer flange solutions for different system layout requirements.

Q2: Can reducing flanges be manufactured for non‑standard diameter transitions?

Yes, custom reducing flanges can be manufactured for any diameter combination. SUNFUN Group produces custom vacuum reducing adaptor components for non‑standard transitions, with dimensions and configurations engineered to meet specific application requirements.

Q3: What materials are used for vacuum reducing adapters?

Standard vacuum reducing adapters are manufactured from 304 or 316L stainless steel. Other materials including aluminum, titanium, and specialty alloys can be specified for specific compatibility or temperature requirements. Material selection for vacuum reducing adapter components depends on the application environment.

Q4: How does SUNFUN Group ensure quality for custom reducing adapters?

SUNFUN Group applies material certification, dimensional verification, surface finish measurement, and leak testing to all custom reducing adapters. Our accredited technology enterprise status supports comprehensive quality systems for vacuum reducing flange products.
