What welding methods are recommended for stainless steel butt weld pipe fittings?

Recommended welding methods for stainless steel butt weld pipe fittings include Gas Tungsten Arc Welding (GTAW/TIG), Gas Metal Arc Welding (GMAW/MIG), and Shielded Metal Arc Welding (SMAW), with GTAW being the preferred process for sanitary and high‑purity applications. The selection depends on material grade, wall thickness, service requirements, and the specific fitting type being welded. SUNFUN Group has been manufacturing stainless steel pipe fittings since 1986, applying precision machining and quality control to produce components that support consistent, reliable weld joints in industrial and sanitary applications.

Product Category 1: Butt Weld Elbows and Bends

Definition and Positioning

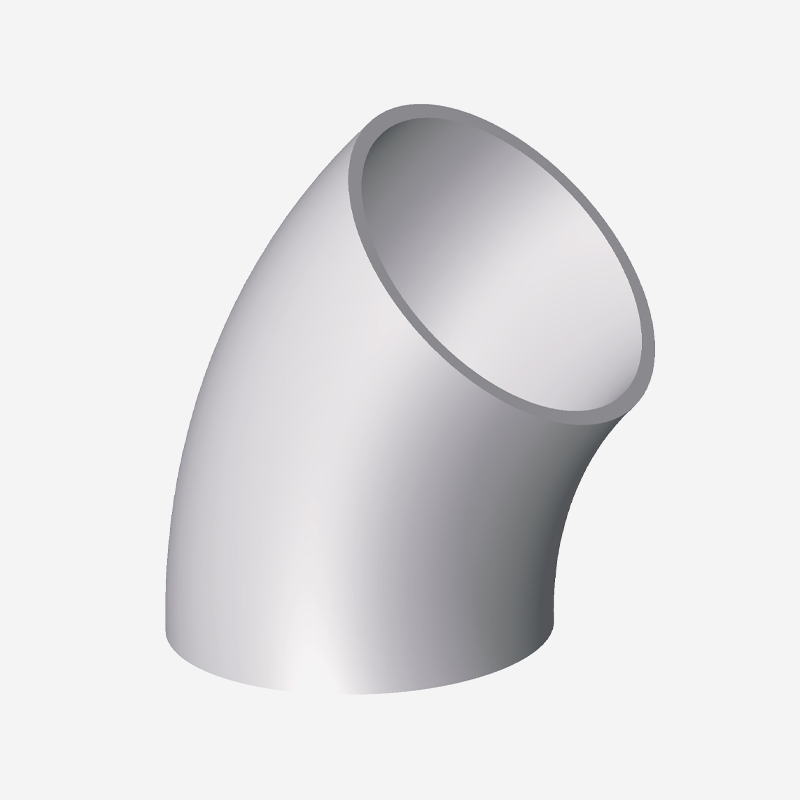

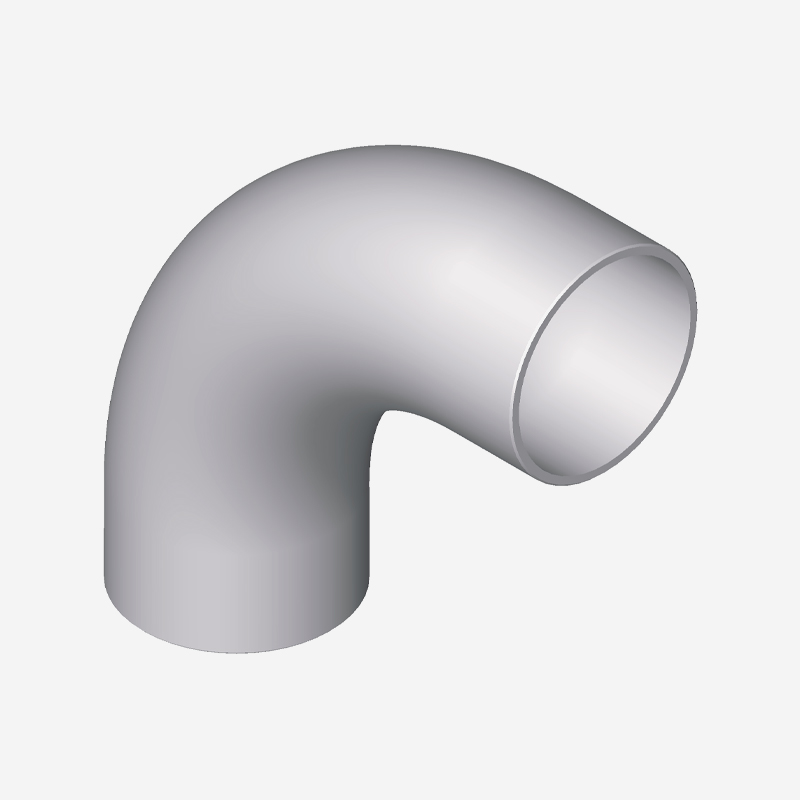

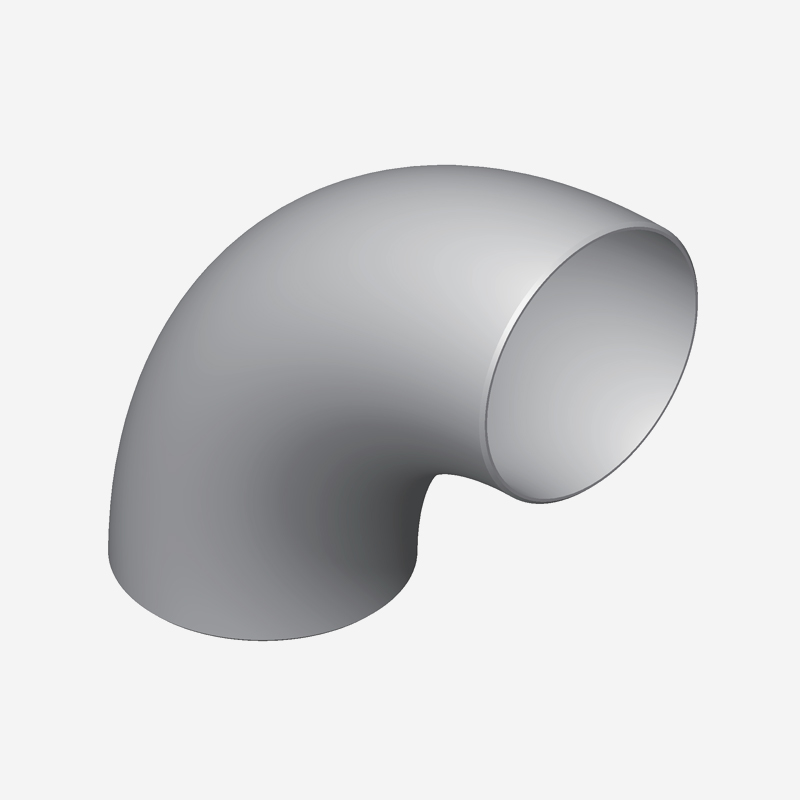

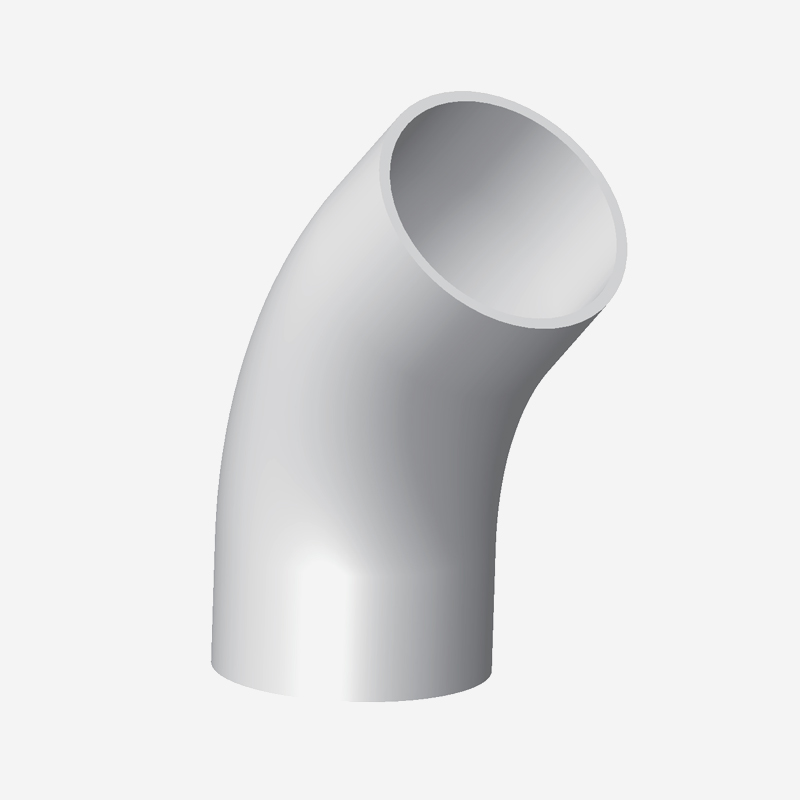

Butt weld elbows and bends are pipe fittings that change the direction of flow in piping systems, available in 45°, 90°, and 180° configurations with various bend radii. These fittings are manufactured from stainless steel pipe or plate and are welded directly to pipe ends with butt weld connections. SUNFUN Group produces butt weld elbows from 304/316L stainless steel with precision‑machined bevel ends that support consistent weld preparation. As industrial pipe fittings, elbows provide the directional changes required in industrial and sanitary piping systems.

Core Functions and Technical Features

Butt weld elbows function as directional transition components in piping systems, with the weld joint providing a full‑strength connection that maintains pressure integrity. The fittings are manufactured with bevel ends prepared for butt welding, typically with a 37.5° bevel angle that provides the joint geometry required for full‑penetration welds. The bend radius—short radius (1D) or long radius (1.5D)—affects the flow characteristics and pressure drop through the fitting.

Welding of stainless steel elbows requires appropriate process selection to maintain material properties and corrosion resistance. GTAW with or without filler metal is the preferred process for thin‑wall and sanitary applications, providing the cleanest weld with minimal contamination. GMAW is suitable for thicker sections and heavier wall pipe where higher deposition rates are beneficial. SMAW may be used for field welding of larger diameter fittings where equipment access is limited. These butt weld pipe fittings are designed to support efficient and reliable welding procedures.

Typical Application Scenarios

Butt weld elbows are used in piping systems across multiple industries. Semiconductor manufacturing uses stainless steel elbows for gas and chemical distribution systems requiring high purity and corrosion resistance. Pharmaceutical and biotechnology facilities specify butt weld elbows for sanitary process piping where crevice‑free construction is essential. Industrial process piping—including chemical processing, oil and gas, and power generation—uses stainless steel elbows for corrosion resistance and pressure integrity.

Differentiation from Other Fitting Types

Butt weld elbows are distinguished from threaded or flanged elbows by their welded connection, which provides a permanent, leak‑tight joint that eliminates potential leak paths. The butt weld connection also provides full‑strength joints that maintain pressure integrity and structural support.

SUNFUN Group's Manufacturing Capabilities

SUNFUN Group's butt weld elbow production applies precision machining and quality control developed over four decades. Our in‑house institute and talent academy provide technical expertise in pipe fitting design and application. Through our open innovation ecosystem, established in partnership with governments, enterprises, universities, and institutions, we maintain knowledge of evolving welding and fitting requirements for stainless steel pipe fittings.

Elbow Specifications

• Angles: 45°, 90°, 180°
• Radii: Short (1D) and long (1.5D)
• Materials: 304L, 316L stainless steel
• End preparation: Beveled for butt welding
• Wall thickness: Schedule 5S to Schedule 80
• Standards: ASME B16.9, MSS SP‑43

Product Category 2: Butt Weld Tees and Crosses

Definition and Positioning

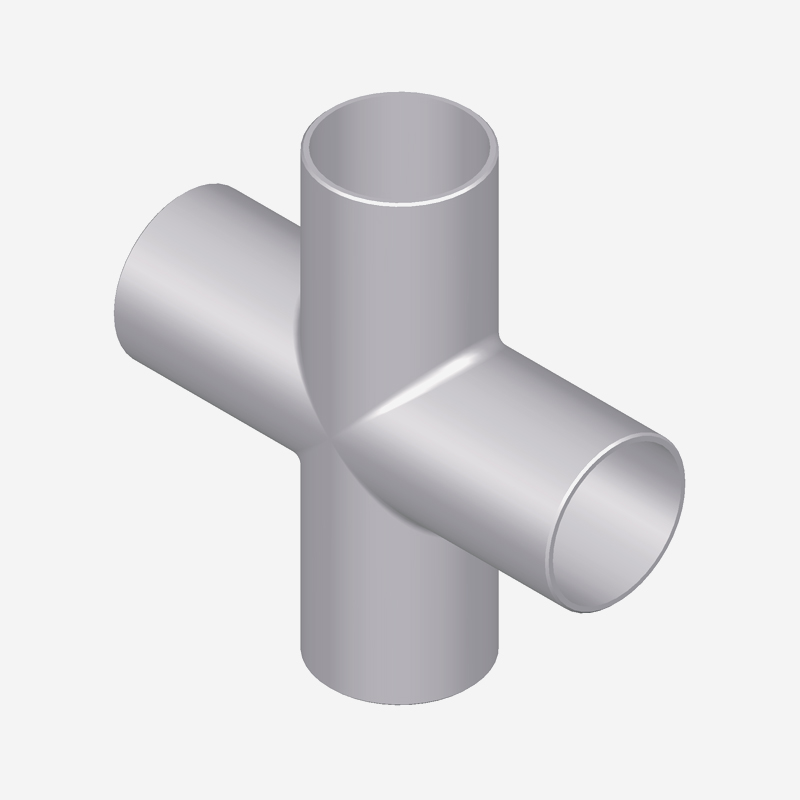

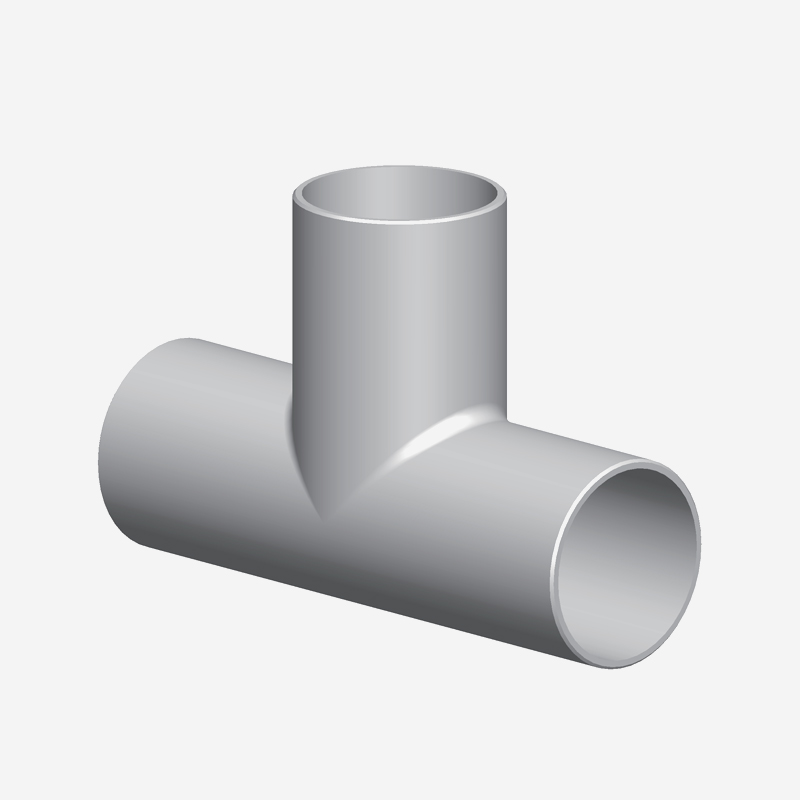

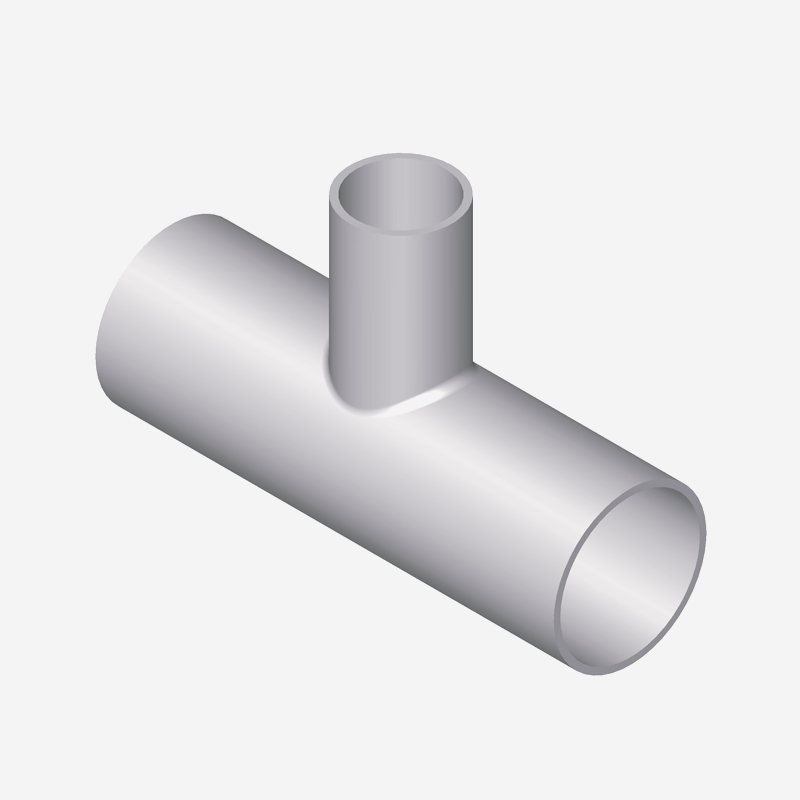

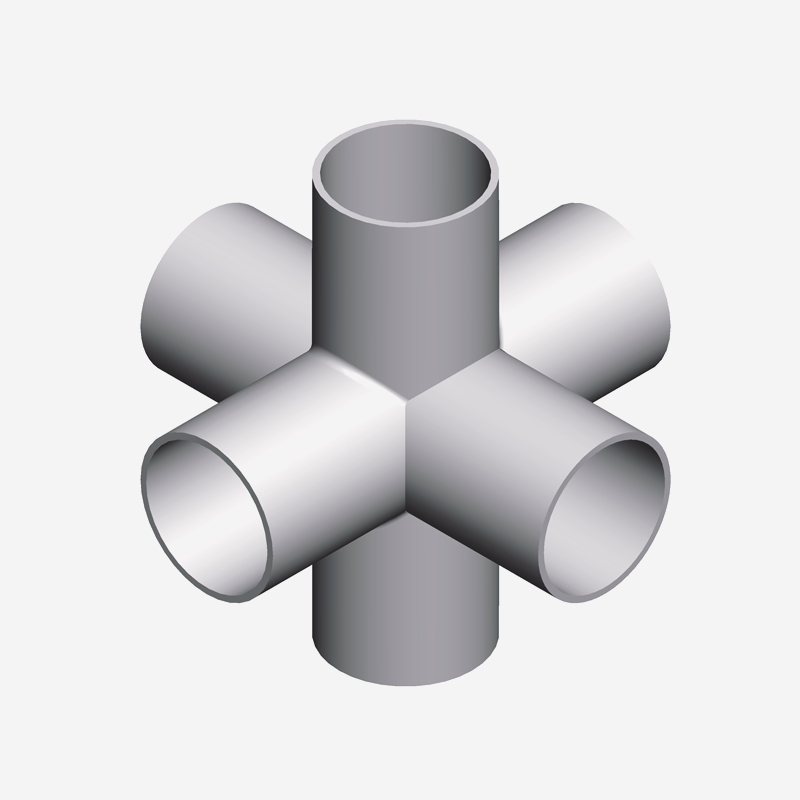

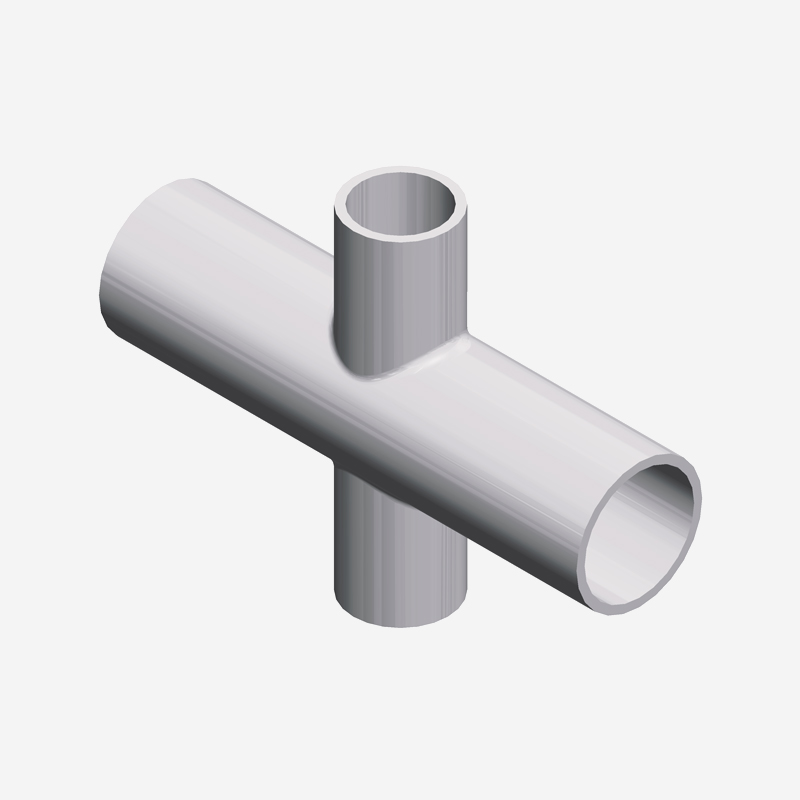

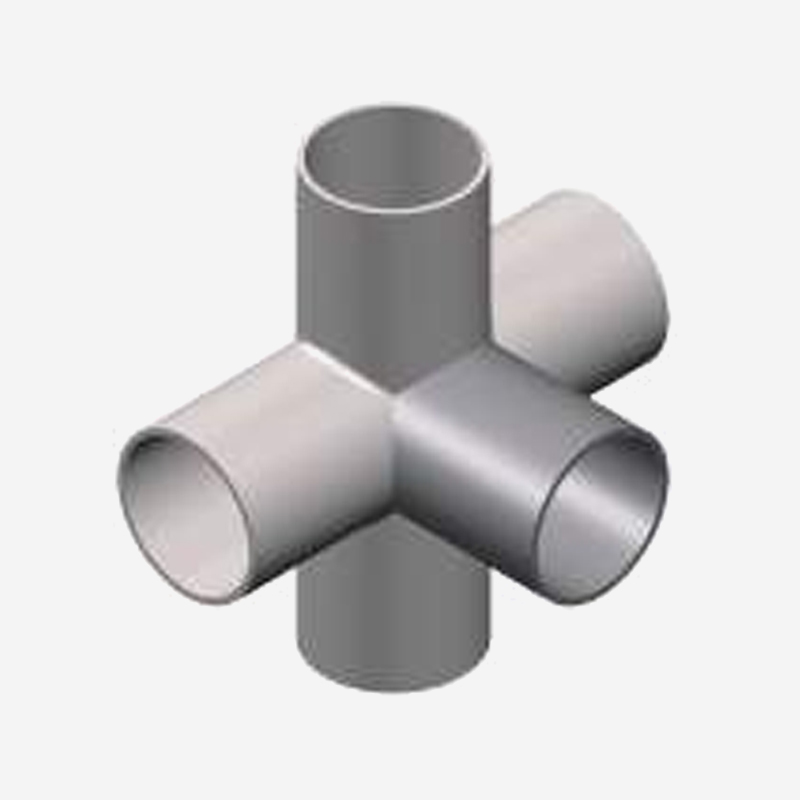

Butt weld tees and crosses are pipe fittings that provide branch connections in piping systems, with tees offering one branch connection and crosses offering two. These fittings are manufactured from stainless steel with branches oriented at 90° to the main run. SUNFUN Group produces butt weld tees and crosses from forged or fabricated construction, with precision‑machined bevel ends that support consistent weld preparation. These industrial pipe fittings enable branch connections in high‑purity and industrial applications.

Core Functions and Technical Features

Butt weld tees function as branch connection components, with the weld joint providing full‑strength connections on all three or four openings. The fittings are manufactured with bevel ends prepared for butt welding, with the branch connection designed to maintain flow capacity. The tee design may be equal or reducing, with the branch size matching or smaller than the main run size. The fitting geometry is designed to minimize flow disturbance and pressure loss through the branch connection.

Welding of tees and crosses requires appropriate process selection based on material thickness and access. GTAW is preferred for all weld passes on thin‑wall and sanitary applications, providing the cleanest weld with full penetration and smooth internal surfaces. GMAW may be used for the fill and cap passes on thicker fittings to improve productivity. SMAW may be used for field welding of larger fittings. Post‑weld cleaning—including pickling and passivation—restores corrosion resistance and surface quality. These stainless steel pipe fittings support reliable branch connections.

Typical Application Scenarios

Butt weld tees and crosses serve multiple functions in piping systems. Semiconductor manufacturing uses tees for gas distribution manifolds and chemical supply systems. Pharmaceutical facilities use tees for sanitary process piping where branch connections are required. Industrial process piping—including chemical processing and power generation—uses tees for distribution and collection headers.

Differentiation from Other Connection Types

Butt weld tees are distinguished from threaded or flanged tees by their welded connection, providing a permanent, leak‑tight joint that eliminates potential leak paths. The butt weld connection also provides full‑strength joints that maintain pressure integrity.

SUNFUN Group's Manufacturing Capabilities

SUNFUN Group's butt weld tee and cross production applies precision machining and quality control. Our accredited technology enterprise status—demonstrated through completion of national‑level R&D tasks and projects commissioned by the NDRC, MOST, and MIIT—supports quality systems for butt weld pipe fittings.

Tee Specifications

• Types: Equal and reducing
• Branch orientation: 90° standard
• Materials: 304L, 316L stainless steel
• End preparation: Beveled for butt welding
• Wall thickness: Schedule 5S to Schedule 80
• Standards: ASME B16.9, MSS SP‑43

Product Category 3: Butt Weld Reducers and End Caps

Definition and Positioning

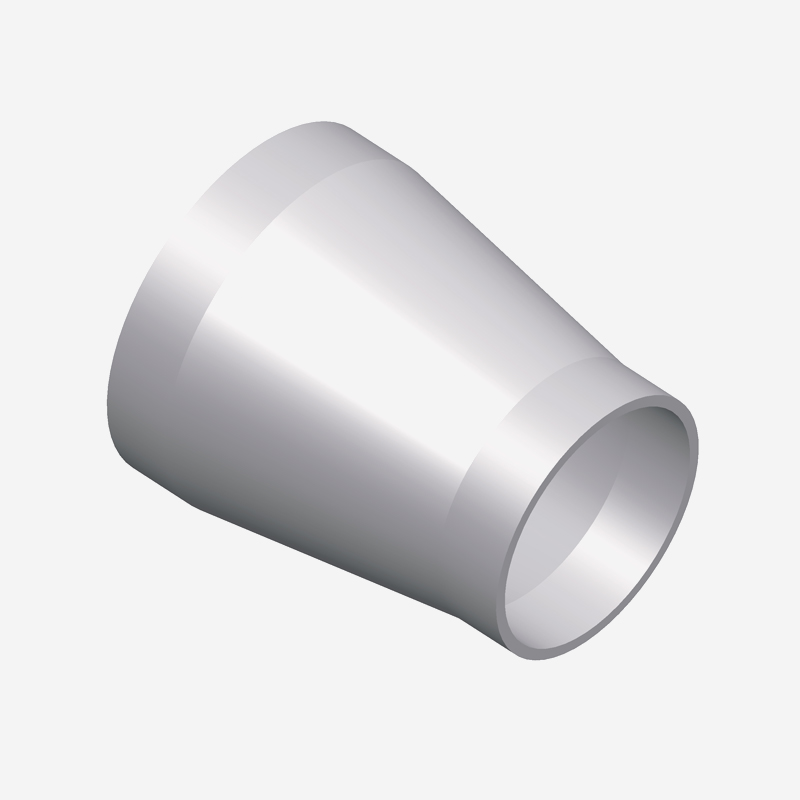

Butt weld reducers and end caps are pipe fittings that change pipe diameter or close pipe ends. Reducers are available in concentric and eccentric configurations, while end caps provide permanent closure of pipe ends. SUNFUN Group produces butt weld reducers and caps from stainless steel with precision‑machined bevel ends that support consistent weld preparation. These components serve as industrial pipe fittings for system transitions and termination points.

Core Functions and Technical Features

Butt weld reducers function as diameter transition components, with the weld joint providing full‑strength connections on both ends. The fittings are manufactured with bevel ends prepared for butt welding, with the transition section designed to maintain flow characteristics. Concentric reducers maintain centreline alignment, while eccentric reducers provide a level bottom surface for drainage applications. End caps are manufactured with one bevel end for welding and a domed or flat closure at the opposite end.

Welding of reducers and end caps requires appropriate process selection based on material thickness and access. GTAW is preferred for the root pass on all applications, providing full penetration and smooth internal surfaces. GMAW and SMAW may be used for fill and cap passes on thicker sections. The weld quality must be verified through visual inspection and, where required, non‑destructive testing. These stainless steel pipe fittings are manufactured to support consistent welding procedures.

Typical Application Scenarios

Butt weld reducers are used wherever pipe diameter changes are required in welded piping systems. End caps are used to permanently close pipe ends in systems that may be extended in the future or to terminate piping runs. Both fitting types are used across semiconductor, pharmaceutical, chemical processing, and power generation industries.

Differentiation from Other Connection Types

Butt weld reducers and end caps differ from threaded or flanged versions in their permanent, leak‑tight construction. The welded connection eliminates potential leak paths and provides full‑strength joints that maintain pressure integrity. The smooth internal surface of butt weld fittings also supports sanitary applications where crevices must be avoided.

SUNFUN Group's Manufacturing Capabilities

SUNFUN Group produces butt weld reducers and end caps with the same precision machining and quality control applied to all fitting types. Our in‑house institute and talent academy provide technical support for welding procedure development and quality assurance for butt weld pipe fittings.

Key Specifications Comparison

GTAW (TIG) is the recommended welding method for stainless steel butt weld pipe fittings in sanitary and high‑purity applications, with GMAW and SMAW serving as complementary processes for thicker sections and field welding. SUNFUN Group manufactures a complete range of butt weld pipe fittings—including elbows, tees, crosses, reducers, and end caps—applying precision machining and quality control developed over four decades of experience. Our 0.001‑mm precision machining ensures that bevel ends meet the dimensional requirements for consistent, reliable weld joints. Through our in‑house institute, talent academy, and open innovation ecosystem—established in partnership with governments, enterprises, universities, and institutions—SUNFUN Group maintains the technical expertise required for industrial pipe fittings in semiconductor, pharmaceutical, and industrial applications.

Frequently Asked Questions

Q1: What is the preferred welding method for sanitary stainless steel pipe fittings?

GTAW (TIG welding) is the preferred method for sanitary stainless steel pipe fittings because it provides the cleanest weld with minimal contamination and full penetration. The process enables precise control of heat input and filler metal addition, producing smooth internal surfaces that support clean‑in‑place (CIP) procedures. Butt weld pipe fittings in sanitary applications are almost exclusively welded using GTAW.

Q2: What bevel preparation is required for butt weld fittings?

Butt weld fittings are manufactured with a 37.5° bevel angle on the pipe end, providing the joint geometry required for full‑penetration welds. The bevel preparation may include a root face or land to support consistent root pass welding. Stainless steel pipe fittings from SUNFUN Group are supplied with bevel ends ready for welding.

Q3: What post‑weld treatment is recommended for stainless steel fittings?

Pickling and passivation are recommended after welding to restore the corrosion resistance of stainless steel. Pickling removes the heat‑tinted oxide layer formed during welding, while passivation promotes the formation of the protective chromium oxide layer. Industrial pipe fittings in corrosive or sanitary applications should be pickled and passivated after welding.

Q4: What quality controls apply to SUNFUN Group's pipe fitting manufacturing?

SUNFUN Group applies material certification, dimensional verification, surface finish measurement, and visual inspection to all pipe fitting production. Our accredited technology enterprise status supports comprehensive quality systems for butt weld pipe fittings, ensuring consistent component quality and reliable welding performance.
