Why are Tri Clamp ferrules preferred over threaded fittings in sanitary fluid systems?

The selection of connection methods in sanitary fluid systems directly impacts product quality, cleaning effectiveness, and operational reliability. Tri Clamp ferrules have become the preferred choice over threaded fittings in pharmaceutical, food and beverage, and biotechnology applications due to their superior hygienic design, ease of cleaning, and reduced contamination risk. SUNFUN Group has been manufacturing precision Tri Clamp components since 1986, applying four decades of machining experience to produce sanitary fittings that meet the stringent requirements of regulated industries.

Product Category 1: Tri Clamp Ferrules and Sanitary Connections

Definition and Positioning

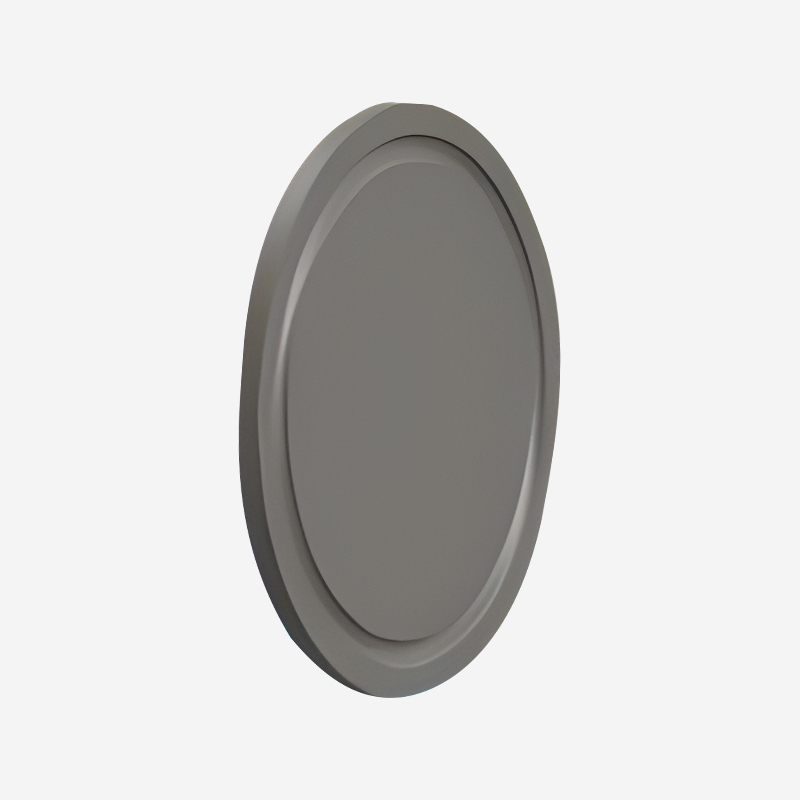

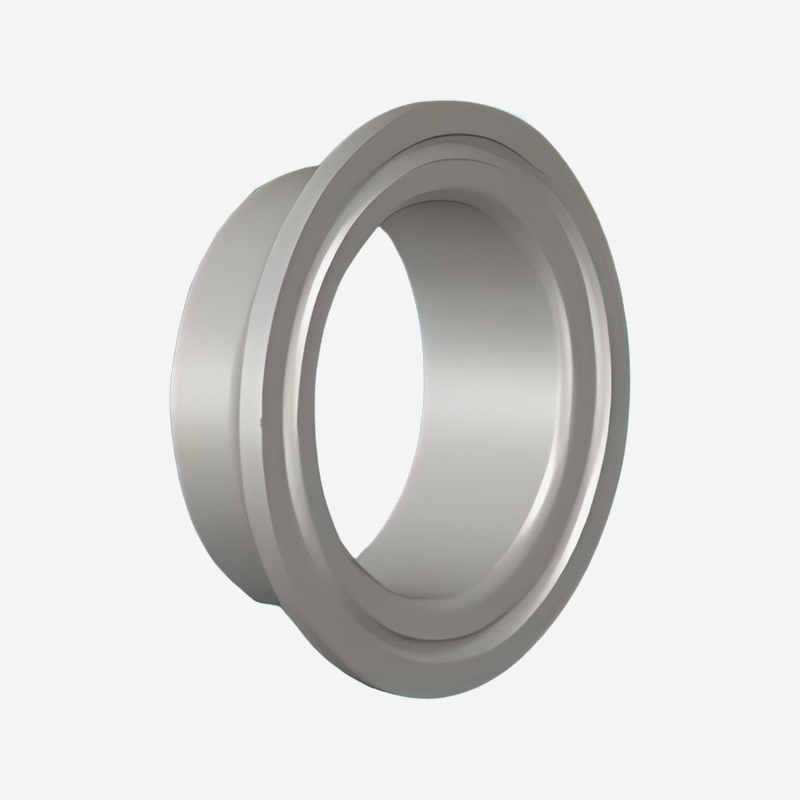

Tri Clamp ferrules are sanitary connection components that use a clamp-and-gasket sealing system instead of threads or welded joints. These fittings consist of two identical ferrule ends with a gasket between them, secured by a clamp that applies even pressure around the circumference. SUNFUN Group's Tri Clamp ferrules are manufactured from 304 or 316L stainless steel with precision‑machined sealing surfaces, positioned as the standard for hygienic connections in applications requiring cleanability and contamination control. As stainless steel fluid flange components, Tri Clamp ferrules provide reliable sealing while supporting rapid disassembly for cleaning and inspection.

Core Functions and Technical Features

The Tri Clamp connection system functions through a mechanical principle that differs fundamentally from threaded connections. The clamp applies uniform circumferential compression to the gasket between two ferrule faces, creating a seal that does not rely on threads that can trap contaminants. The ferrule face geometry includes a specific sealing surface design that positions the gasket for consistent compression. This design ensures that tri clamp ferrule connections maintain sealing integrity through repeated assembly and disassembly cycles.

Surface finish is critical for sanitary applications. SUNFUN Group's Tri Clamp ferrules are manufactured with surface finishes that meet industry standards for sanitary applications, typically achieving roughness values below 0.8 µm Ra on wetted surfaces. The internal geometry is designed to eliminate crevices and dead zones where product could accumulate or bacteria could proliferate. Our 0.001‑mm precision machining ensures that the sealing faces meet the dimensional requirements for consistent gasket compression. These features make sanitary pipe fittings in the Tri Clamp style the preferred choice for hygienic systems.

Typical Application Scenarios

Tri Clamp ferrules are specified in applications where cleanliness and sanitation are critical. Pharmaceutical manufacturing facilities use Tri Clamp connections for product transfer lines, process equipment connections, and clean-in-place (CIP) systems. Food and beverage processing applications—including dairy, brewing, and juice production—rely on Tri Clamp fittings for their cleanability and corrosion resistance. Biotechnology and life sciences applications use Tri Clamp connections for sterile processing and bioreactor systems. Medical device manufacturing employs Tri Clamp fittings for fluid handling in sterile environments.

Differentiation from Threaded Fittings

Tri Clamp ferrules differ from threaded fittings in several significant respects. Threaded connections create crevices where product can accumulate and bacteria can grow, making them difficult to clean and sanitise effectively. Threads can also trap cleaning solutions that may leach into the product stream. Tri Clamp connections provide smooth, crevice‑free surfaces that support effective cleaning and sanitation. The clamp‑and‑gasket sealing mechanism allows rapid disassembly for inspection and cleaning, unlike threaded connections that may require tools and extended disassembly time. These advantages establish Tri Clamp ferrules as the preferred stainless steel fluid flange solution for sanitary applications.

SUNFUN Group's Tri Clamp Manufacturing

SUNFUN Group's Tri Clamp ferrule production applies precision machining and surface finishing to meet sanitary requirements. Our in‑house institute and talent academy provide technical expertise in sanitary connection design. Through our open innovation ecosystem, established in partnership with governments, enterprises, universities, and institutions, we maintain awareness of evolving sanitary standards. Our accredited technology enterprise status—demonstrated through completion of national‑level R&D tasks and projects commissioned by the NDRC, MOST, and MIIT—supports quality systems for tri clamp ferrule production.

Tri Clamp Specifications

• Materials: 304/316L stainless steel standard
• Surface finish: Ra ≤ 0.8 µm wetted surfaces
• Size range: 1/2" to 8" (custom sizes available)
• Sealing method: Gasket with clamp compression
• Standards: ASME BPE, 3‑A Sanitary Standards
• Connections: Weld, ferrule, or adaptor ends

Product Category 2: Sanitary Gaskets and Sealing Systems

Definition and Positioning

Sanitary gaskets and sealing systems complete the Tri Clamp connection by providing the sealing element between ferrule faces. SUNFUN Group offers a comprehensive range of gaskets in materials including EPDM, silicone, FKM, and PTFE, each selected for specific temperature and chemical compatibility requirements. These gaskets are designed to maintain seal integrity through repeated compression cycles while meeting the extractable and leachable requirements of regulated industries. Together with ferrules, these components form the complete sanitary pipe fittings solution.

Core Functions and Technical Features

Sanitary gaskets serve as the sealing element in Tri Clamp connections, positioned between two ferrule faces and compressed by the clamp to create a leak‑tight seal. The gasket material must maintain compression set resistance through thermal cycling and repeated assembly cycles while providing chemical resistance to the product stream and cleaning solutions. Gasket designs include a specific cross‑section geometry that positions the sealing surfaces for consistent compression and minimizes the surface area exposed to the product stream.

Materials for sanitary gaskets are selected based on the specific application requirements. EPDM offers good temperature resistance and chemical compatibility for many applications. FKM provides enhanced chemical resistance for more aggressive product or cleaning environments. PTFE offers broad chemical compatibility and low extractables for sensitive applications. SUNFUN Group's gaskets are manufactured with attention to dimension and surface quality, ensuring consistent sealing performance across the installed system.

Typical Application Scenarios

Sanitary gaskets are used in every Tri Clamp connection, serving the same pharmaceutical, food and beverage, and biotechnology applications as the ferrules. The gasket material selection depends on the specific product being handled, cleaning protocols, and operating conditions.

Differentiation from Industrial Gaskets

Sanitary gaskets differ from industrial gaskets in their material quality, design, and certification requirements. Sanitary gaskets are manufactured from materials that meet FDA and USP Class VI requirements for contact with pharmaceutical and food products. The gasket design is engineered to minimize product entrapment and facilitate cleaning. Certification and traceability documentation is typically required for sanitary gaskets, supporting regulatory compliance.

SUNFUN Group's Gasket Capabilities

SUNFUN Group provides sanitary gaskets in multiple materials, supporting our Tri Clamp ferrule product line. Our quality systems ensure consistent gasket dimensions and material quality. Our accredited technology enterprise status supports documentation and traceability for regulated applications. Through our open innovation ecosystem, we maintain awareness of emerging gasket technologies and material developments.

Gasket Material Options

• EPDM: Temperature range -30 °C to 120 °C, good chemical resistance
• Silicone: Temperature range -50 °C to 200 °C, excellent extractables
• FKM: Temperature range -20 °C to 200 °C, enhanced chemical resistance
• PTFE: Temperature range -200 °C to 260 °C, broad chemical compatibility
• Encapsulated designs: PTFE‑encapsulated silicone for combined properties

Product Category 3: Clamp Assemblies and Installation Hardware

Definition and Positioning

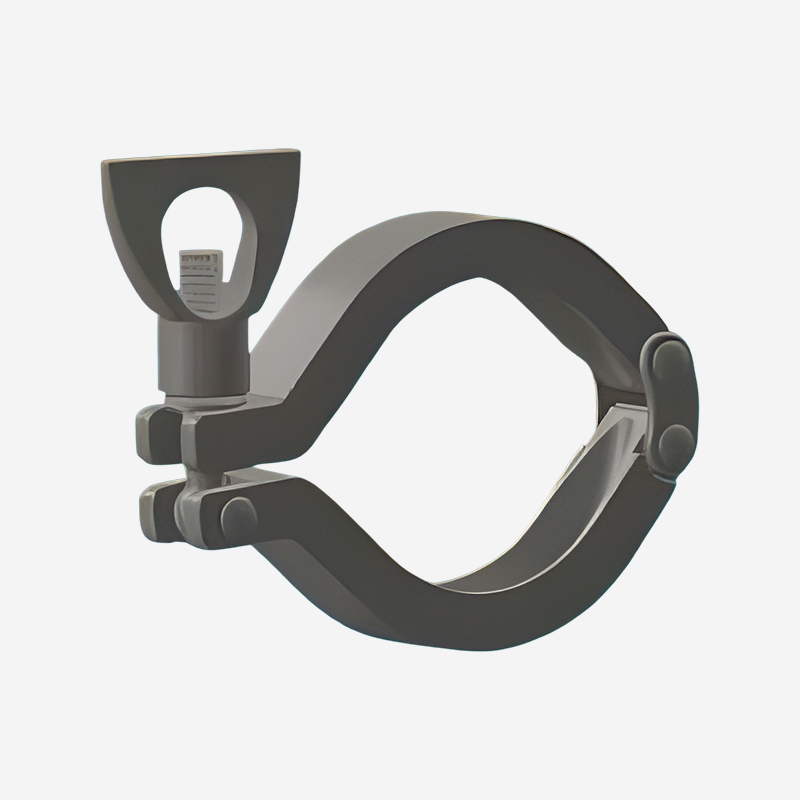

Clamp assemblies and installation hardware secure Tri Clamp connections, providing the compression force required for seal integrity. SUNFUN Group's clamp assemblies are manufactured from stainless steel with precision‑machined engagement surfaces that distribute clamping force evenly around the ferrule circumference. These components complete the sanitary connection system, enabling rapid assembly and disassembly while maintaining consistent seal compression across operating cycles.

Core Functions and Technical Features

Clamp assemblies serve as the mechanical device that applies sealing compression to Tri Clamp connections. The clamp design includes engagement features that capture the ferrule flanges, with a tightening mechanism that applies compression through the clamp housing. The clamp dimensions must match the ferrule size to ensure proper engagement and seal compression. SUNFUN Group's clamps are manufactured with engagement surfaces that provide even load distribution, maintaining consistent seal compression.

Clamp assemblies are available in single‑bolt and multi‑bolt configurations, with materials matching the ferrule materials. The clamp design must accommodate thermal expansion while maintaining sealing compression. SUNFUN Group's clamps are manufactured with surface treatments for corrosion resistance. These components complete the stainless steel fluid flange solution for sanitary applications.

Typical Application Scenarios

Clamp assemblies are used in every Tri Clamp connection, serving the same applications as ferrules and gaskets. The selection of clamp type and material depends on the specific application requirements and installation conditions.

Differentiation from Standard Clamps

Sanitary clamps differ from standard industrial clamps in their design, materials, and surface finish. Sanitary clamps are manufactured from stainless steel with surface finishes that prevent corrosion and facilitate cleaning. The engagement surfaces are machined to dimensions that ensure even load distribution and consistent seal compression.

SUNFUN Group's Clamp Capabilities

SUNFUN Group manufactures clamp assemblies that meet sanitary standards, supporting our complete sanitary connection product line. Our in‑house institute provides engineering support for clamp design. Our accredited technology enterprise status ensures quality systems for all sanitary pipe fittings.

Key Specifications Comparison

Tri Clamp ferrules are preferred over threaded fittings in sanitary fluid systems because they provide superior cleanability, eliminate contamination traps, support rapid disassembly, and maintain sealing integrity through repeated service cycles. SUNFUN Group manufactures comprehensive Tri Clamp solutions, including ferrules, gaskets, and clamps, applying precision machining and quality control to meet the stringent requirements of pharmaceutical, food and beverage, and biotechnology applications. Our four decades of experience, combined with accredited technology enterprise status, in‑house institute, and talent academy, support the production of tri clamp ferrule components that meet the highest sanitary standards. Through our open innovation ecosystem and partnerships with governments, enterprises, universities, and institutions, SUNFUN Group maintains the technical expertise required for sanitary connection solutions.

Frequently Asked Questions

Q1: Why are Tri Clamp connections considered more sanitary than threaded fittings?

Tri Clamp connections provide smooth, crevice‑free surfaces that do not trap product or bacteria. Threaded fittings have crevices where product can accumulate and cleaning solutions cannot reach effectively. This makes sanitary pipe fittings in the Tri Clamp style the preferred choice for hygienic applications.

Q2: What surface finishes are required for sanitary Tri Clamp ferrules?

Sanitary Tri Clamp ferrules typically require wetted surface finishes below 0.8 µm Ra, with electropolishing or mechanical polishing used to achieve the required surface quality. SUNFUN Group's tri clamp ferrule products are manufactured to meet these surface finish requirements.

Q3: Can Tri Clamp connections be used with high‑temperature processes?

Yes, with appropriate material selection. Stainless steel ferrules can withstand high temperatures, and gasket materials are available for elevated temperature service. stainless steel fluid flange components in the Tri Clamp style support applications up to the temperature limits of the selected gasket material.

Q4: What quality controls apply to SUNFUN Group's sanitary Tri Clamp components?

SUNFUN Group applies material certification, dimensional verification, surface finish measurement, and visual inspection to all sanitary components. Our accredited technology enterprise status supports comprehensive quality systems for tri clamp ferrule products, with documentation available for regulatory compliance.
