What is the typical lifespan of a UHV gate valve in a 24/7 semiconductor production environment?

The typical lifespan of a UHV gate valve in a 24/7 semiconductor production environment ranges from 500,000 to over 2,000,000 actuation cycles, depending on process conditions, maintenance practices, and valve design. In calendar terms, this translates to approximately 3 to 8 years of continuous operation in most semiconductor fabrication facilities. SUNFUN Group has been manufacturing gate valves since 1986, applying precision machining and quality control to produce valves that deliver extended service life in demanding semiconductor applications.

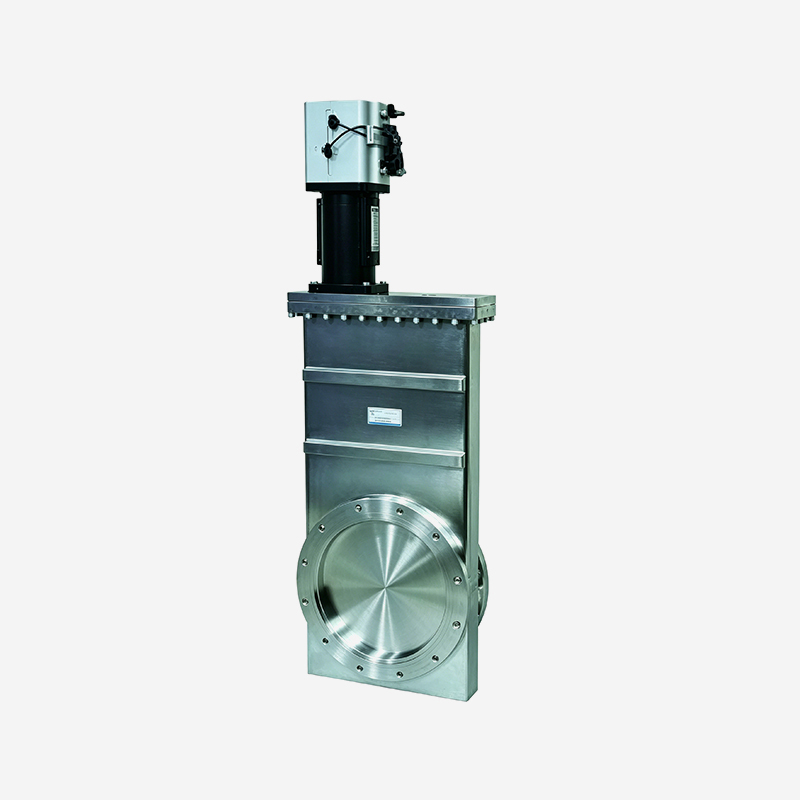

Product Category 1: Standard Gate Valves for Semiconductor Processing

Definition and Positioning

Standard gate valves are mechanical isolation devices used in semiconductor processing to seal process chambers from pumping systems and to isolate different vacuum zones within cluster tools. These valves feature a gate mechanism that moves perpendicular to the flow path, providing full‑bore conductance when open and positive sealing when closed. SUNFUN Group manufactures standard gate valves from stainless steel with precision‑machined sealing surfaces, positioning them as workhorse components for high‑volume semiconductor production. As vacuum gate valve products, these valves are designed for extended service life in continuous operation.

Core Functions and Technical Features

Standard gate valves function through a mechanical linkage that moves the gate plate into and out of the flow path. The gate is guided by precision‑machined tracks that maintain alignment through thousands of actuation cycles. Sealing is achieved through the compression of an O‑ring or metal seal against the valve seat, depending on the sealing method specified. The valve body and gate are manufactured from stainless steel grades selected for corrosion resistance and dimensional stability under thermal cycling.

Service life in standard gate valves is determined by multiple factors: seal material and its resistance to process chemistry, gate guide wear from repeated actuation, actuator reliability, and thermal cycling effects on valve geometry. Valves operating in benign processes with infrequent thermal cycling may exceed 2,000,000 cycles. Valves exposed to aggressive process chemistries or frequent thermal cycles may require service at 500,000 cycles. SUNFUN Group's high vacuum gate valve products are designed with replaceable wear components that support extended service life with proper maintenance.

Typical Application Scenarios

Standard gate valves are deployed throughout semiconductor fabrication facilities. Transfer chambers use gate valves to isolate different processing modules. Process chambers use gate valves for isolation during wafer processing. Load lock systems incorporate gate valves for pressure control and wafer transfer operations. Each application presents specific demands that affect valve service life.

Differentiation from Other Valve Types

Gate valves are distinguished from angle and inline valves by their straight‑through flow path and isolation functionality. The gate design provides full conductance when open, making it suitable for applications where pumping speed must not be compromised. Gate valves also provide positive sealing with minimal particle generation, essential for semiconductor processing.

SUNFUN Group's Manufacturing Capabilities

SUNFUN Group's standard gate valve production applies precision machining and quality control appropriate for semiconductor applications. Our 0.001‑mm precision machining ensures that gate guides and sealing surfaces meet the dimensional requirements for extended service life. Through our open innovation ecosystem, established in partnership with governments, enterprises, universities, and institutions, we maintain knowledge of evolving process requirements for vacuum gate valve products.

Gate Valve Specifications

• Types: Slit, pendulum, rectangular
• Materials: 316L stainless steel
• Seals: Elastomer or metal
• Actuation: Pneumatic or electric
• Cycle life: 500,000 – 2,000,000 cycles
• Service interval: 6‑24 months depending on process

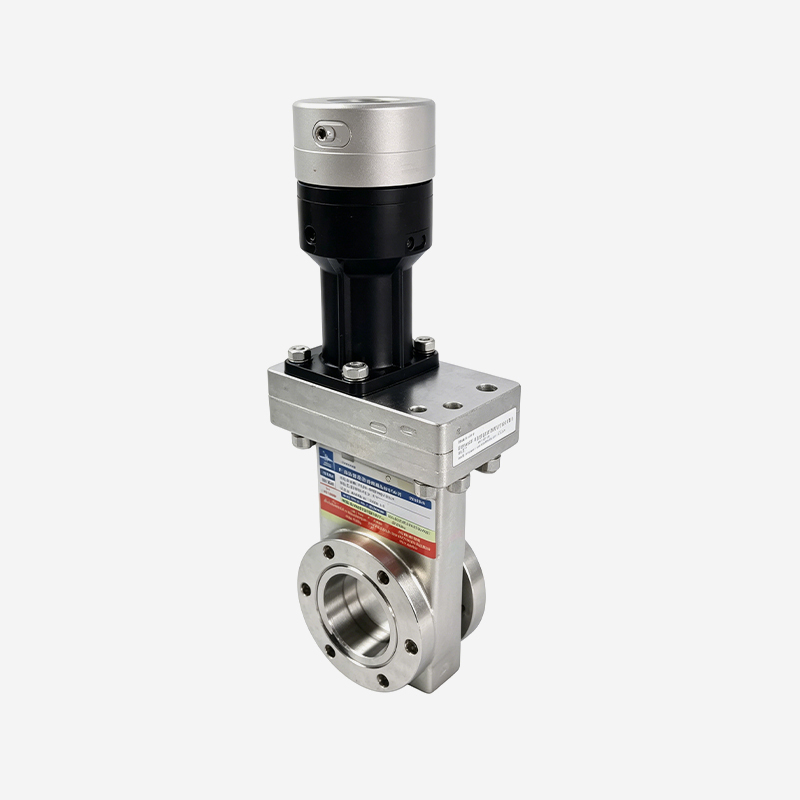

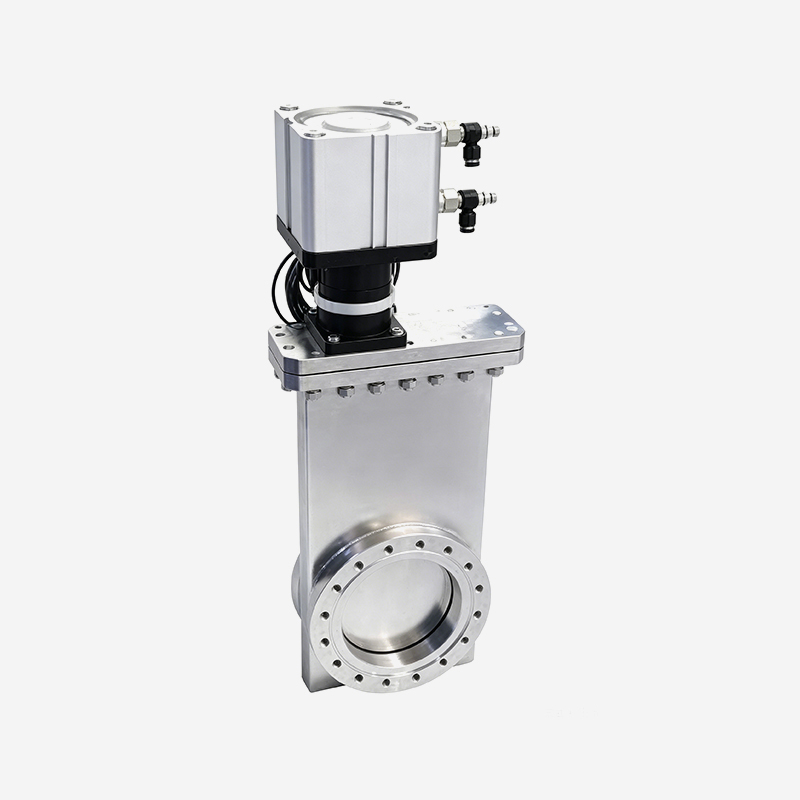

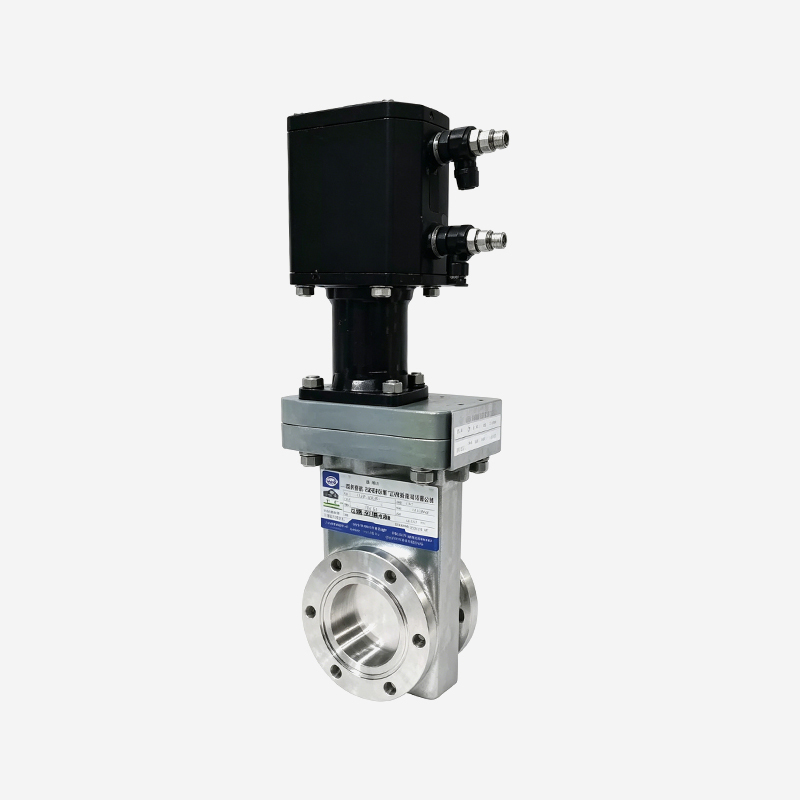

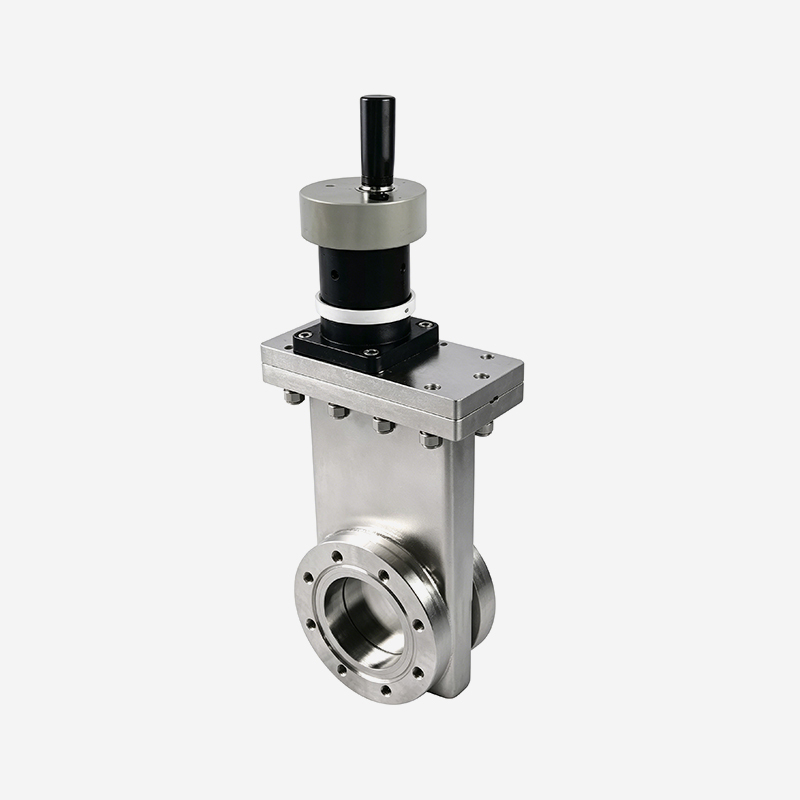

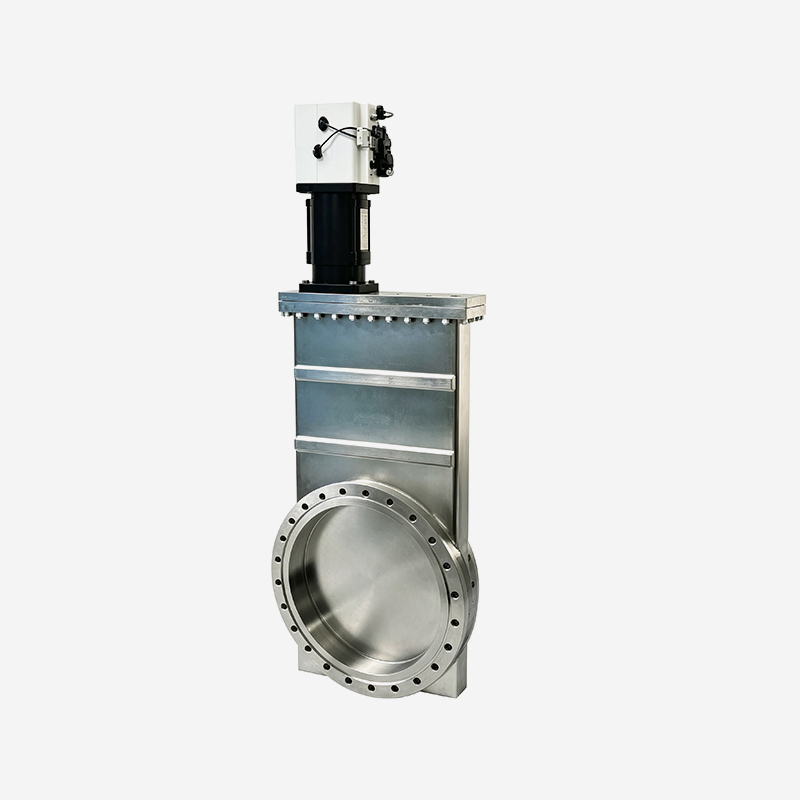

Product Category 2: UHV Gate Valves for Ultra‑High Vacuum Applications

Definition and Positioning

UHV gate valves are designed for applications requiring pressures below 10⁻⁹ mbar, featuring all‑metal sealing and bakeout capability up to 450 °C. These valves are used in the most demanding semiconductor processes—including molecular beam epitaxy, atomic layer deposition, and electron beam lithography—where even trace contamination cannot be tolerated. SUNFUN Group manufactures UHV gate valves with metal‑sealed gates and bellows‑sealed actuation, supporting the extended service life required for critical semiconductor processes. As UHV gate valve products, these valves are engineered for maximum reliability.

Core Functions and Technical Features

UHV gate valves function similarly to standard gate valves but with materials and design features specific to ultra‑high vacuum applications. The gate sealing surface is typically metal‑to‑metal or uses a deformable metal seal to withstand bakeout temperatures. Bellows seals isolate the actuation mechanism from the vacuum environment, eliminating dynamic seal leakage. The valve body is manufactured from stainless steel grades with low magnetic permeability and low outgassing characteristics.

Service life for UHV gate valves is influenced by process conditions and maintenance practices. The metal sealing surfaces are designed for extended life with proper operation and maintenance. The bellows seals are typically rated for millions of cycles with proper air quality and maintenance. SUNFUN Group's UHV gate valve products are manufactured with precision‑machined components that support long service life in semiconductor production environments.

Typical Application Scenarios

UHV gate valves are specified for the most demanding semiconductor processes. Molecular beam epitaxy systems require UHV gate valves for isolation and process control. Atomic layer deposition tools use UHV gate valves for chamber isolation. Electron beam lithography systems require UHV gate valves for beamline integrity and contamination control.

Differentiation from Standard Gate Valves

UHV gate valves are distinguished from standard gate valves by their bakeout capability, outgassing characteristics, and sealing method. Standard gate valves with elastomer seals are limited to approximately 200 °C bakeout, while UHV gate valves can be baked to 450 °C. The all‑metal sealing of UHV gate valves eliminates the outgassing sources that limit ultimate pressure in elastomer‑sealed systems.

SUNFUN Group's UHV Manufacturing Capabilities

SUNFUN Group's UHV gate valve production applies specialised manufacturing processes appropriate for ultra‑high vacuum applications. Our accredited technology enterprise status—demonstrated through national‑level R&D tasks and projects commissioned by the NDRC, MOST, and MIIT—supports quality systems for high vacuum gate valve products.

UHV Gate Valve Specifications

• Types: Slit, pendulum
• Materials: 316LN stainless steel, low magnetism
• Seals: Metal‑to‑metal or deformable metal seal
• Bakeout temperature: Up to 450 °C
• Cycle life: 500,000 – 1,500,000 cycles
• Service interval: 12‑36 months depending on process

Product Category 3: Gate Valve Service and Maintenance

Definition and Positioning

Gate valve service and maintenance encompass the procedures required to maintain valve performance and extend service life in semiconductor production environments. SUNFUN Group provides technical support for gate valve maintenance, leveraging decades of experience in vacuum valve design and manufacturing. Our in‑house institute and talent academy provide expertise in valve service procedures for vacuum gate valve products.

Core Functions and Technical Features

Gate valve maintenance includes several key procedures. Seal inspection and replacement are performed at scheduled intervals or when performance degradation is detected. Gate guide lubrication and cleaning ensure consistent operation and prevent binding. Actuator inspection verifies proper operation and air pressure supply. Leak testing confirms sealing performance after maintenance.

Service planning for semiconductor gate valves is typically based on cycle count or calendar time. Many fabs schedule preventive maintenance at 6‑month intervals for high‑cycle valves or 12‑24 month intervals for lower‑cycle applications. SUNFUN Group provides guidance on service planning based on valve type, process conditions, and operating history. These high vacuum gate valve products support extended service life with proper maintenance.

Typical Application Scenarios

Gate valve service is performed throughout semiconductor fabrication facilities. Preventive maintenance is typically scheduled during planned equipment downtime or during chamber maintenance windows. Emergency service may be required when valve performance degrades unexpectedly.

Differentiation from Other Valve Maintenance

Gate valve maintenance differs from angle and inline valve maintenance in the complexity of the gate mechanism and the alignment requirements. Gate valves require careful reassembly to maintain gate alignment and sealing performance. Specialised tools and procedures are typically required for proper service.

SUNFUN Group's Service Support

SUNFUN Group provides technical support and service documentation for gate valve maintenance. Our in‑house institute provides guidance on service procedures. Through our open innovation ecosystem, we maintain knowledge of evolving maintenance best practices for UHV gate valve products.

Key Specifications Comparison

The typical lifespan of a UHV gate valve in a 24/7 semiconductor production environment ranges from 500,000 to over 2,000,000 actuation cycles—approximately 3 to 8 years of continuous operation—depending on process conditions and maintenance practices. SUNFUN Group manufactures a comprehensive range of gate valves, including standard and UHV configurations, applying precision machining and quality control developed over four decades of experience. Our 0.001‑mm precision machining ensures that valve components meet dimensional requirements for extended service life in demanding semiconductor applications. Through our in‑house institute, talent academy, and open innovation ecosystem—established in partnership with governments, enterprises, universities, and institutions—SUNFUN Group maintains the technical expertise required for vacuum gate valve products that deliver reliable performance in 24/7 semiconductor production.

Frequently Asked Questions

Q1: How many cycles can a vacuum gate valve typically achieve?

Standard gate valves typically achieve 500,000 to 2,000,000 cycles. UHV gate valves typically achieve 500,000 to 1,500,000 cycles. Actual service life depends on process conditions, actuator reliability, and maintenance practices. Vacuum gate valve products from SUNFUN Group are designed for extended cycle life.

Q2: What factors reduce gate valve service life?

Factors that reduce service life include aggressive process chemistries, frequent thermal cycling, high actuation frequency, particulate contamination, and inadequate maintenance. High vacuum gate valve products are more susceptible to process chemistry effects than standard industrial valves.

Q3: How often should gate valves be serviced in semiconductor production?

Service intervals typically range from 6 to 24 months, depending on valve type and process conditions. High‑cycle valves in aggressive processes may require 6‑month service intervals, while lower‑cycle valves in benign processes may operate for 24 months between services. UHV gate valve products typically have longer service intervals due to more robust design.

Q4: What quality controls apply to SUNFUN Group's gate valve manufacturing?

SUNFUN Group applies material certification, dimensional verification, surface finish measurement, leak testing, and cycle testing to all gate valve production. Our accredited technology enterprise status supports comprehensive quality systems for vacuum gate valve products, ensuring consistent valve performance and extended service life.
