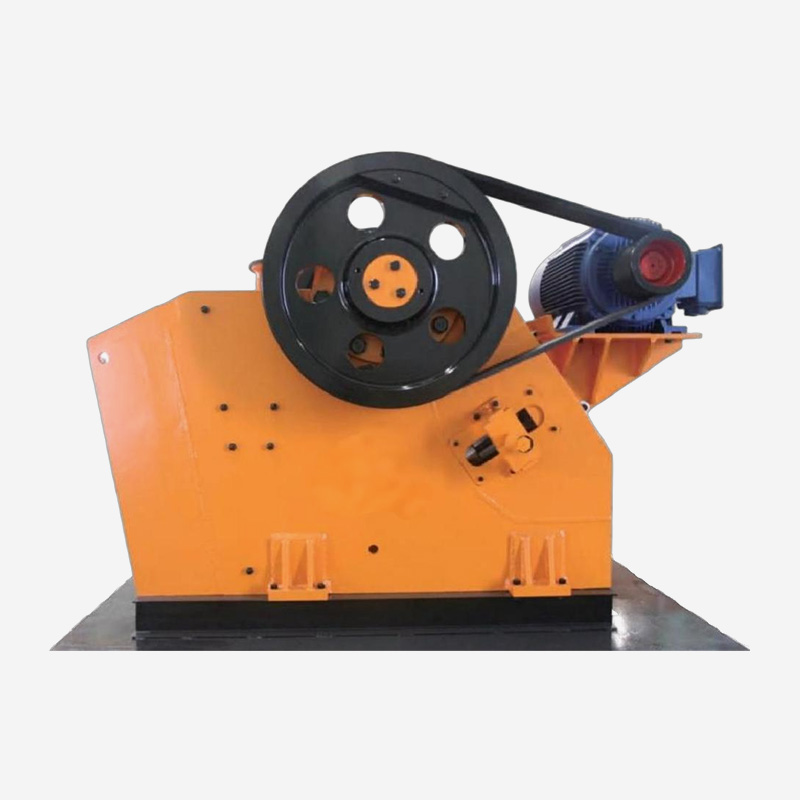

The PV series jaw crusher is a new type of equipment developed by our company. It can crush various materials with a compressive strength of no more than 250 megapascals and is widely used in the primary crushing of ores and rocks in multiple fields.

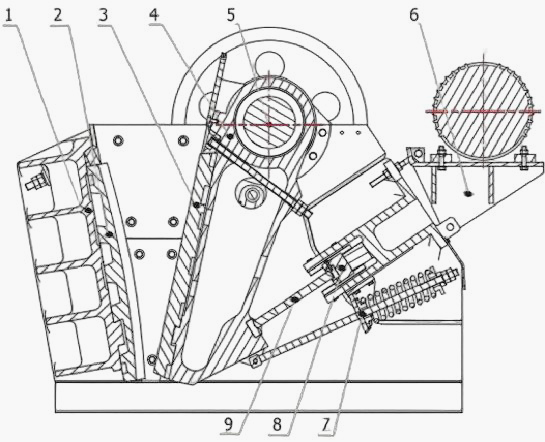

Main components of this machine:
|
1. Rack components |
2. Fixed jaw plate |
|
3. Movable jaw plate |
4. Movable Jaw |
|
5. Eccentric shaft |
6. Motor base |
|
7. Pull rod spring assembly |
8. Adjust the seat |
|
9. Elbow plate |
Features
The V-shaped cavity type has a large stroke, excellent crushing performance, high processing capacity and efficiency. Its production capacity is 30% higher than that of the PE series jaw crusher.
The entire welded frame is rigid, lightweight, material-efficient and easy to install.
The thickness of the wedge block at the discharge port is adjusted by rotating the screw, which is convenient, flexible and has a wide range.
The motor is mounted on a frame to reduce the installation space.
