SUNFUN Group specializes in intelligent and sustainable industrial development. Driving quality advancement in manufacturing across China and the globe through technological innovation, we are committed to creating green value for a better human life.
We have deep expertise in smart energy and smart manufacturing, consistently achieving breakthroughs in precision production. Our capabilities range from 0.001-mm precision machining to the manufacture of components weighing from 0.1 grams to 150 tons. We maintain energy consumption within 0.1% and implement fully intelligent process management—all supported by four decades of specialized experience!
Innovation is the foundation of the growth of our group. We have built an open and collaborative innovation ecosystem, partnering with governments, enterprises, universities, and institutions to enable cooperative innovation and shared value, injecting sustained momentum into the industry.<br/>
As an accredited technology enterprise with its own institute and talent academy, SUNFUN has completed more than ten national-level R&D tasks and undertaken major projects commissioned by agencies such as the NDRC, MOST, and MIIT.

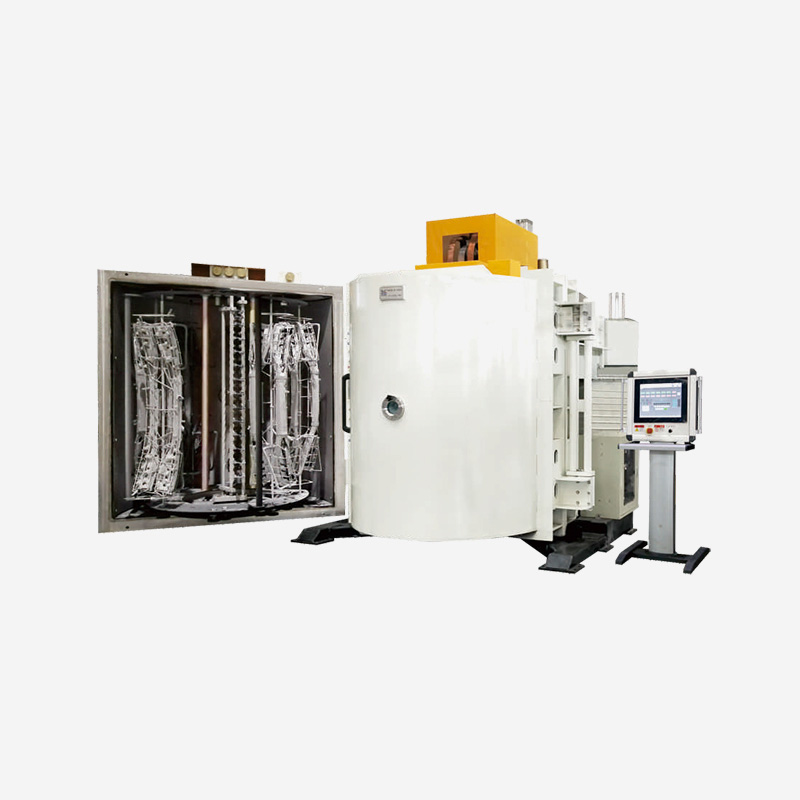

This series of equipment combines magnetron sputtering and vacuum evaporation techniques. It adopts the magnetron sputtering cathode glow discharge technique to spill atoms from the targets, then some of the atoms are ionized and deposited on substrates, while it can be used to get a vaporized film by resistance heating material. Combined with
PECVD and HiPIMS technology to increase flexibility and realize more applications.
Plasma system, high-efficiency magnetron sputtering cathode (cylindrical target and plane target), and resistance evaporation systems. It has features of high deposition rate, strong adhesion, smooth and shiny coating, good uniformity, etc. The machine is fully automatic control, has a large loading capacity, runs reliably, is highly qualified, has low cost, and is environmentally protective.
It is widely used in automotive decorative parts, notebooks, smartphones, and household appliances industries. It can deposit metal film, alloy film, composite film, transparent (translucent) film, NCvM film and EMI film.
| Model | HCAL-1820/HCME-1820 | HCAL-1518 | HCAD-2000 | HCAF-2500 |
| Size(mm) | φ1800xH2000 | φ1500xH1800 | φ1200xH2000 | φ2500xH1550 |
| Shaft | 6×φ540/8×430 | 2×φ540 | 1×φ850 | φ2500 |
| Structure | Vertical double door | Vertical single door with double shaft | Vertical double door | |
| Technology | Magnetron sputtering, resistance evaporation, PECVD | Magnetron sputtering, PECVD | Magnetron sputtering, resistance evaporation | |
