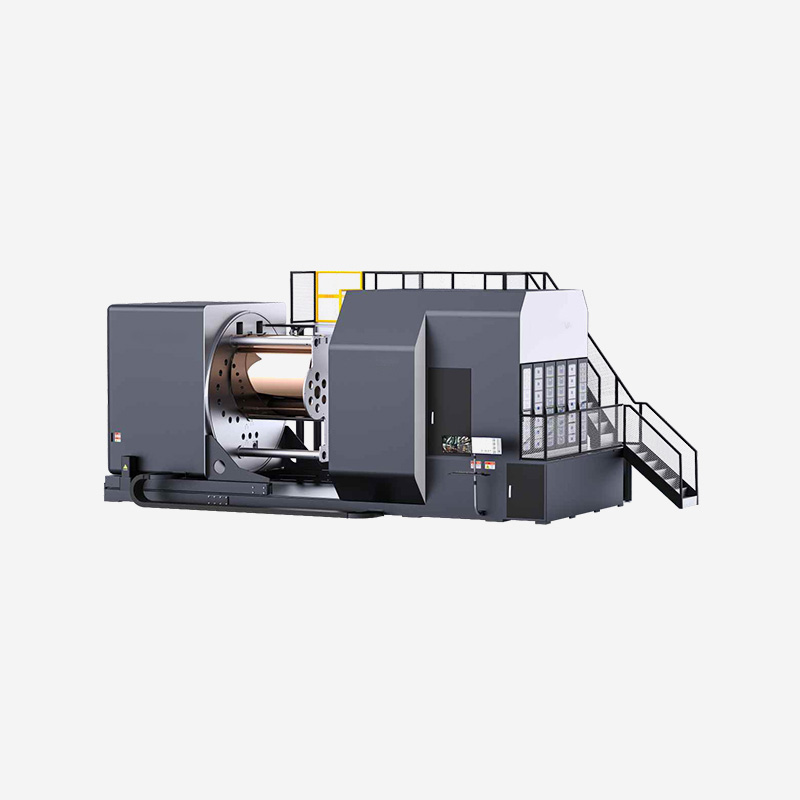

This series of equipment adopts the flexible combination of DC magnetron sputtering, RF / MF reactive magnetron sputtering and other technologies. The modular concept and unique technology ensure high-quality production.
Continuously coating on the surface of strip coils such as PET, PI, PC, COP and other flexible polymers and metal strips, can= sputter aluminium, titanium, chromium, copper, nickel-chromium, nickel, silver and other metal materials, and TiO2, Nb2O5, SiO, ITO, SiAlOx, MoOx and other oxides.
Characteristics
● Rotatable cathodes with RF, DC, DC unipolar pulsed, DC bipolar pulsed or MF power supplies.
● Lowest particle generation (sputter-up orientation of cathodes), optional plasma pre-treatment, a temperature-controlled coating drum (standard: -15 to +80℃), turbomolecular pumps plus cold traps and in-situ layer measurement systems.
● Key components are easy to maintain and clean, meet the needs of all-weather production, stable and excellent product quality.
Applications
● Metal strip (aluminium coil, titanium coil, stainless steel coil, steel coil, etc).
● Semiconductor field (IM-ITO and metal mesh touch film, display metal wiring, barrier layer).
● Energy sector (window film, thin film solar cells, composite copper foil for lithium/power battery current collectors).
● Electronic equipment field (efficient FCCL, EMI coating).
| Model | HCFLC-400 | HCFLC-650 | HCFLC-1650 | HCFLC-2000 | ||
| Width | 400mm | 650mm | 1650mm | 2000mm | ||
| Coil diameter | Max. φ500mm | |||||
| Substrate | PET, PEN, PI, Stainless steel, Al, Ti, Flexible glass, etc. | |||||
| Coating | Metal | Ag,Al,Cu,Cr,NiCr,Ti,etc. | Dielectrics | AZO,ITO,SiO2,SiN,SnO2,Nb2O5,TiO2,etc. | ||
