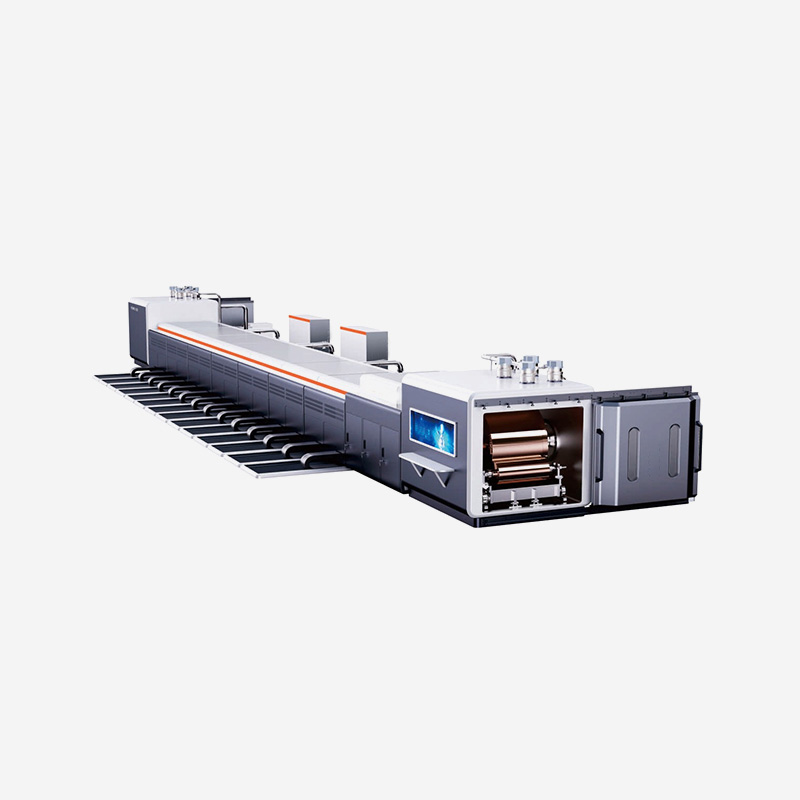

By using the newly developed magnetron sputtering coating technology, cathodic arc ion coating technology, EB-PVD, JVD jet vapor deposition and the unique design of ion source assisted deposition coating technology and other technical combinations, it has been successfully applied in large-diameter, wide-width and high vacuum continuous winding coating equipment to produce decorative films, anti-corrosion films and metal or TCo films on both sides of steel strips, improve the surface characteristics of metal coils and expand the scope of application.
Modular design concept, flexible combination of strip lock systems, plasma pre-treatment, magnetron sputtering system, inline measurement and process control system, and electron beam evaporation. With good uniformity, high deposition efficiency, and fast coating speed, it is the best choice for a continuous coating production line of large metal coils.
Characteristics
● The strip lock system ensures that the strip continues to enter and exit between the atmospheric pressure and the vacuum.
● Plasma pretreatment improves layer adhesion.
● Planarorrotatablemagnetrontoachievehighcoatingrateandhighutilizationrateoftargetmaterialtoensureproductionefficiency
● High-power E-beam system for the high-rate evaporation of metals, alloys, and compounds, greatly improving the evaporation rate.
Applications
● Decorative coatings
● Create surfaces that look and feel like high-quality metal at minimum process costs.
● A wide range of colors can be created, either intrinsic color or interference color.
● Anti-corrosion coatings
● Zn or Mg can be efficiently coated on both sides of steel strips using PVD technology.
● The corrosion protection can be improved.
● Hydrogen fuel cell metal bipolar plate coatings
● Multiple deposition technologies can improve the corrosion resistance, minimize the interfacial contact resistance, and increase the electrochemical stability and the mechanical adhesion.
● Solar cell electrode coatings
● Front contact oxide film: TCO(ITO,i-ZnO). Back contact metal film: Mo, Cr, MoOx, MoNx.
● Solar collecting plate coatings
● Efficient selective absorption coating (blue film/black film): Maximum absorption of solar radiation energy, and reduces radiant heat loss.
| Model | HCMRC-300 | HCMRC-1250 | HCMRC-1500 | HCMRC-2500 | |||
| Width | 300mm | 1250mm | 1500mm | 2500mm | |||
| Coil Diameter | Max. φ3000mm | ||||||
| Substrate | Al, Ti, stainless steel, steel, etc | ||||||
| Coating | Metal | Ag,Al,Cr,Cu,Mg,Ti,Zn,etc | Dielectrics | CrN,CrO,CrON,SiN,SiOx,TiNx,TiOC,TiOx,MoOx,etc. | |||
