SUNFUN Group specializes in intelligent and sustainable industrial development. Driving quality advancement in manufacturing across China and the globe through technological innovation, we are committed to creating green value for a better human life.
We have deep expertise in smart energy and smart manufacturing, consistently achieving breakthroughs in precision production. Our capabilities range from 0.001-mm precision machining to the manufacture of components weighing from 0.1 grams to 150 tons. We maintain energy consumption within 0.1% and implement fully intelligent process management—all supported by four decades of specialized experience!
Innovation is the foundation of the growth of our group. We have built an open and collaborative innovation ecosystem, partnering with governments, enterprises, universities, and institutions to enable cooperative innovation and shared value, injecting sustained momentum into the industry.<br/>
As an accredited technology enterprise with its own institute and talent academy, SUNFUN has completed more than ten national-level R&D tasks and undertaken major projects commissioned by agencies such as the NDRC, MOST, and MIIT.

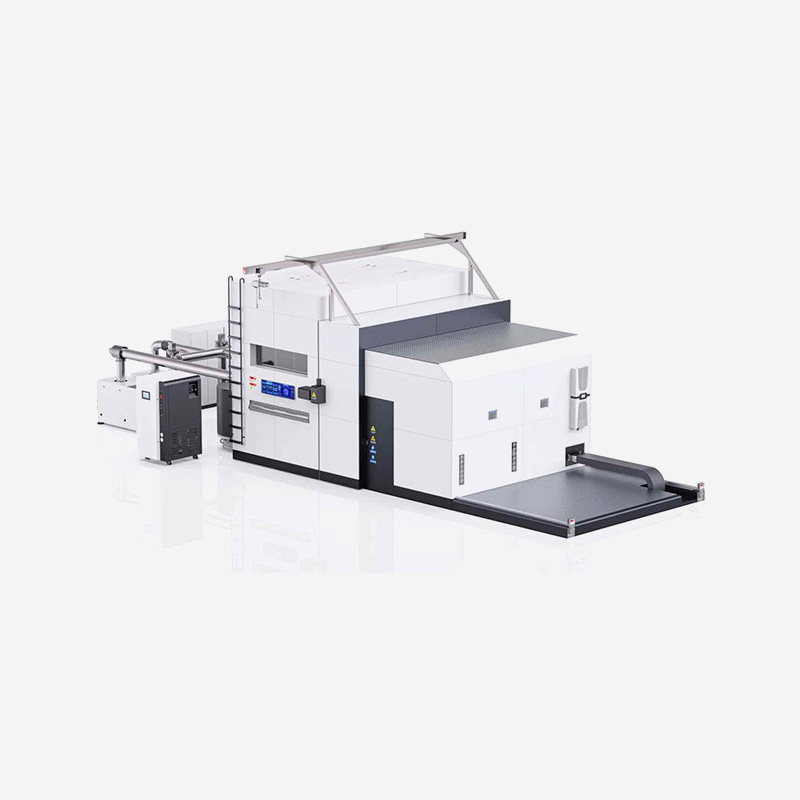

This series of equipment adopts the flexible combination of resistance heating evaporation, induction heating evaporation, electron beam heating, evaporation, and other technologies, with multi-functional processes and cost-effective, so as to meet the needs of customers for a variety of films.
Continuously coating on PET, OPP, PVC, CPP, and other macromolecule films, paper, metal foil ect, can evaporate aluminum, copper, silver, and other metal materials, ZnS, SiO, MgF and other compounds.
Characteristics
● Plasma pretreatment improves layer adhesion and reduces permeability.
● ZnS evaporator consists of directly heated metal crucibles, an evaporation box and individual power supplies.
● All of your coatings and profiles can be combined with segmented structures by using the pattern printing system.
● Automated free margin evaporator, increase consistency in your film capacitor manufacture, reduce costs, and improve environmental performance.
Applications
● Energy (composite aluminum foil for lithium/power battery positive electrodes).
● Packaging materials (food, cigarettes, cosmetics, anti-counterfeit trademarks, pharmaceuticals).
● Capacitors (metallized polyester, metallized polypropylene film on PET, OPP).
● Bronzing materials (reflective tape, metal printing, automotive interior decoration).
● Textiles (gold and silver line protective clothing, space cotton,non-woven fabric).
| Model | HCPAK | HCSEC | HCCAP |
| Width | Max.3850mm | Max.1350mm | Max.900mm |
| Coil Diameter | Max. φ1000mm | Max. φ800mm | Max. φ600mm |
| Substrate | PET, (B)OPP, CPP, HDPE, LDPE, PA, etc. | PET, (B)OPP, etc. | PET, OPP, etc. |
| Coating | Al, Cu | Siox, ZnS, MgF | Al, Al/Zn, Al/Zn/Al, Ag/Zn |
