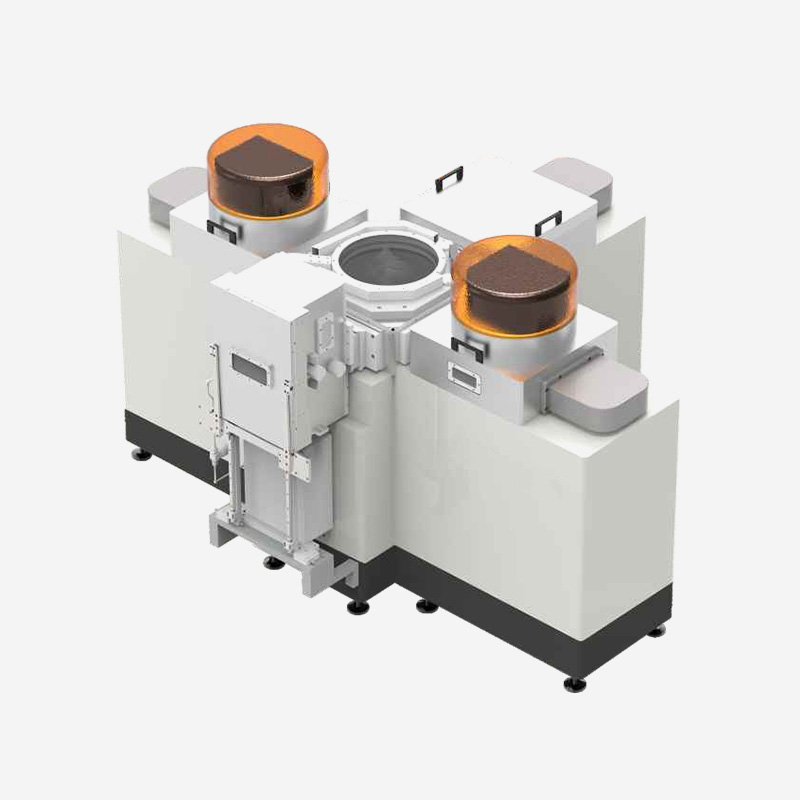

The described equipment and process pertain to a high-capacity plasma-enhanced atomic layer deposition system (PEALD) with an automatic wafer handling system and specialized ALD control software. It enables fully automated operation with low precursor consumption and excellent film uniformity and conformality. ALD (Atomic Layer Deposition) is an advanced thin-film deposition technique that allows precise control of film growth on substrate surfaces at the atomic level. By alternating exposure to different chemical vapor precursors, self-limiting surface reactions occur, resulting in layer-by-layer deposition to form thin films. ALD offers significant advantages over traditional deposition techniques, particularly in uniformity of film thickness and coverage of complex-shaped components. It achieves highly uniform coating, even on surfaces with micro or nano-scale structures.
It is widely used in optical lenses, Micro/MiniLEDs, power devices, OLEDs, MEMS, advanced packaging, etc.
Application
Optical: Antireflection film (no ghost or glare), high reflective film (T < 0.1%)， lens protective layer, grating device/ curved surface coating.
Semiconductor: Chip passivation layer, barrier layer, conductive layer, dielectric layer, etc.
Photovoltaic: Passivation layer, transparent conductive layer, water vapor barrier layer, electron transport layer, hole transport layer, etc.
MEMS/Sensor: Insulation layer, diffusion barrier layer, water vapor barrier layer, hydrophobic/hydrophilic layer.
| Substrate type | Wafer | Solar cell or PCB | 3D structural parts |
| Substrate size | 50~300mm | 200×200mm | Φ300×400mm |
| Precursor | Precursors: Liquid, solid, gas, ozone | ||
| Typical processes | Al₂O₃,TiO₂,SiO₂,Ta₂O₅,HfO₂,TiN,AIN,etc. | ||
| Deposition temperature | RT~400℃ | ||
| Non-uniformity | <±1% | ||
| Optional ozone source/plasma source | |||
