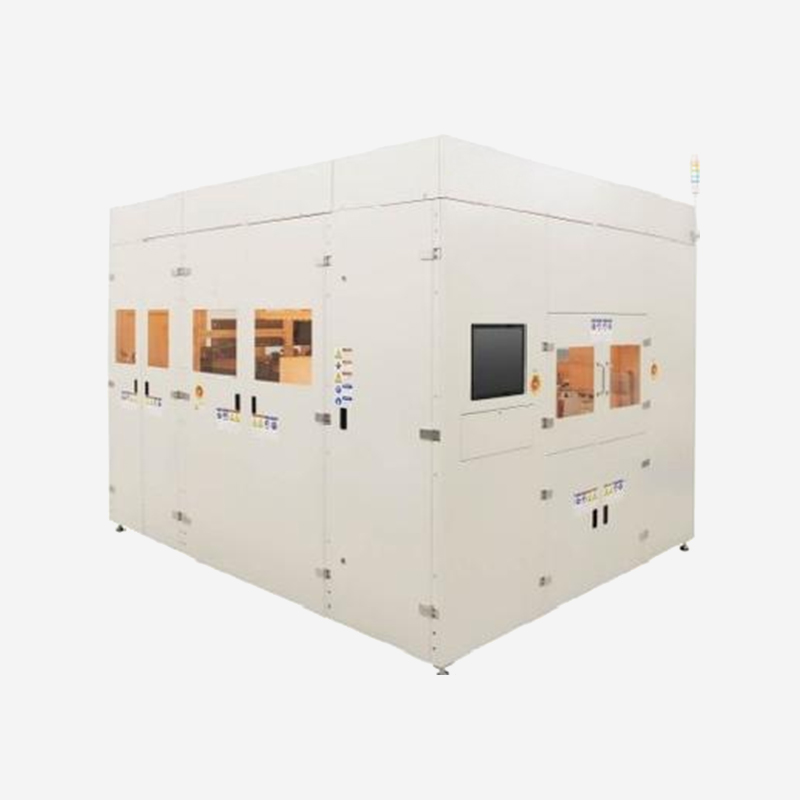

For Packaging, MEMS, Power/Compound Semiconductor
The equipment employs high-precision temperature and pressure control technology to achieve high-strength permanent wafer bonding, supporting multiple process applications (such as eutectic, anodic, and adhesive bonding). It is suitable for advanced packaging, MEMS, and 3D integration, ensuring low stress and high alignment accuracy.
Features
● Meet SEMI S2,F47 Standards
● Adjustable to Various Bonding Processes
● High Bonding Temperature, High Bonding Pressure, High Vacuum
● High Precision Temperature Control
● High Precision Contract Force Control
● 8”/12”,6”/8” Compatible
● Thick Wafer Compatible
● Adaptive Chuck to Avoid Wafers Damage
● Multiple Reactant Gas Channels for Various Bonding Processes
● For Anodic Bonding, Eutectic Bonding, and Adhesive Bonding processes
Specifications
|
Description |
Specifications |
|
Substrate Diameter |
100mm/150mm/200mm/300mm |
|
Max Bonding Pressure |
20KN、60KN(optional)、100KN(optional) |
|
Max Bonding Temperature |
300℃、550℃ |
|
Max Vacuum |
1X0 mbar、1X10⁶mbar(optional) |
|
Pressure Fluctuation |
<2% |
|
Temperature Accuracy |
≤±1℃ |
|
Temperature Uniformity |
≤1.5%F.S. |
|
Max Heating Rate |
30℃/min |
|
Max Cooling Rate |
20℃/min |
|
Alignment Accuracy |
500nm(Mean+3σ) |
|
Misalignment |
5um(OVL result) |
|
Throughput |
1对/小时(Not include the time for maintaining pressure and temperature) |
