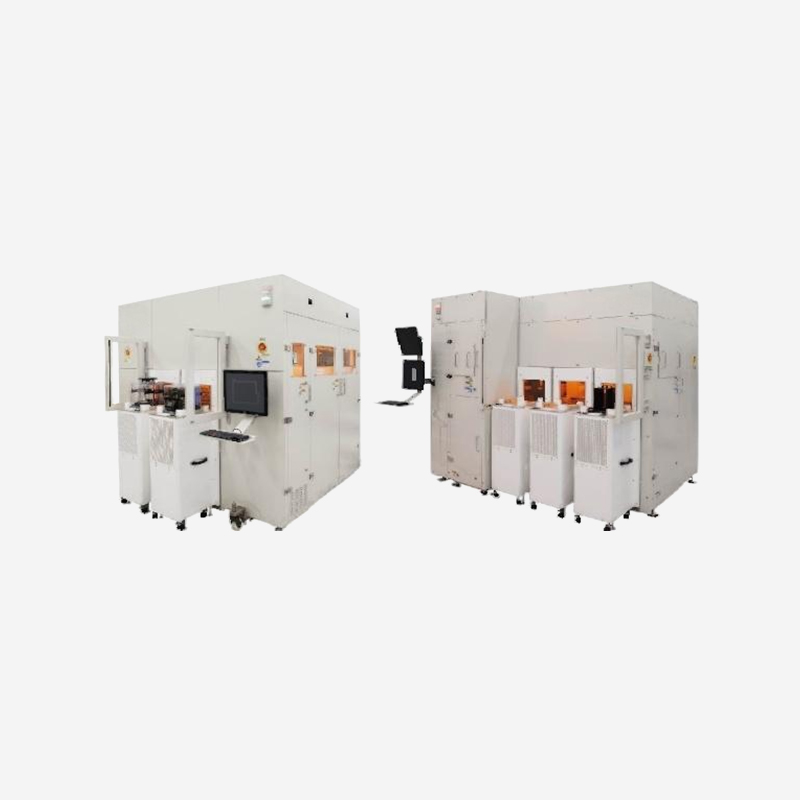

For Production of Advanced Substrates
The system is designed for advanced substrate production, including SOI (Silicon-on-Insulator)and POI (Piezoelectric-on-Insulator). Featuring plasma surface treatment and low-temperature bonding technology, it enables ultrathin layer transfer with superior interface quality. Ideal for 5G, RF devices, and MEMS manufacturing, delivering high uniformity and low defect rates for mass production.
Features
● Meet SEMI S2,F47 Standards
● ISO Class 1 Mini Environment
● Modular Design&Low Maintenance Cost
● Compact Size, Small Footprint
● Customizable Cleaning Unit
● Optional Vacuum Bonding Chamber
● Highly Customizable
● 8”/12”,6”/8” Compatible
● Plasma Activation Unit
● Contaminant-free Backside Treatment
● Optional Two-phase Flow/Brush/Mega-sonic Cleaning Functions
● Ready for Si/SiC/LT Heterogeneous Bonding
Specifications
|
Description |
Specifications |
|
Substrate Diameter |
150/200/300 mm |
|
Alignment Accuracy |
X和Y:±100μm,θ:±0.1° |
|
Bonding Pressure |
Max:5N,±10% |
|
Initial Bonding Position |
From Edge to Center |
|
Defect |
0.5mm |
|
Metal |
Ca,Ni,Fe,Cu,Al,Mg,Cr,K,Na,Mn, Zn,Ge,Mo,W,Ti<1e10 at/cm² |
|
Particle |
<[email protected](transfer only) <[email protected](clean only) <[email protected](plasma only) |
