For HBM、AI、HPC、2.5D/3D integration 、3D NAND

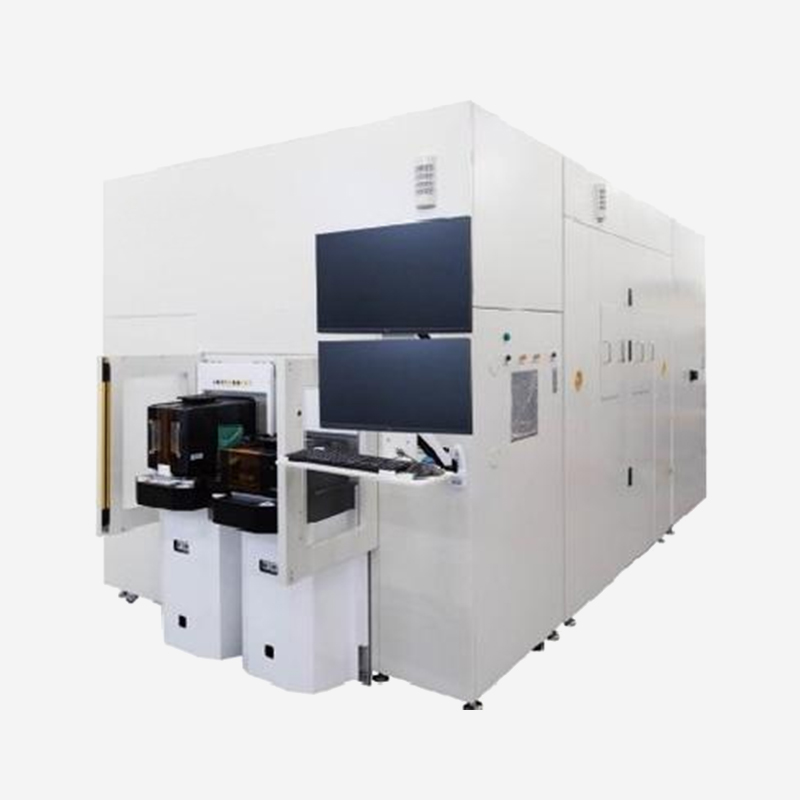

The D2W series fully automatic bonding system supports a wide range of possible chip architectures, mainly for high-end applications, including High-Performance Computing(HPC), Artificial Intelligence(AI), High-Bandwidth Memory(HBM), etc, to achieve high-performance chip connectivity, promote the development of 2.5D/3D, Chiplet packaging process.
Features
● Meet SEMI S2, F47 Standards
● Fully Automated EFEM
● High Precision Wafer Transfer System
● Low-Temperature Plasma Activation
● Cleaning Unit
● UV De-bond Unit
● Pre-bonding at Room Temperature
● Ultra-thin Die pickup capability
● High precision bonding Intensity control
● High Precision Alignment
● High Throughput
● AVM Unit
Specifications
|
Description |
Specifications |
|
Substrate Diameter |
200mm/300mm |
|
Substrate Thickness |
350-1500um |
|
Die Thickness |
35-1000um |
|
Bonding Intensity control |
0.1-50N |
|
Alignment Accuracy |
50nm(3σ) |
|
Misalignment |
200nm(Mean+3σ) |
|
Throughput |
2000UPH(Double Head) |
|
Environmental Control System |
ISO Class 1 |
