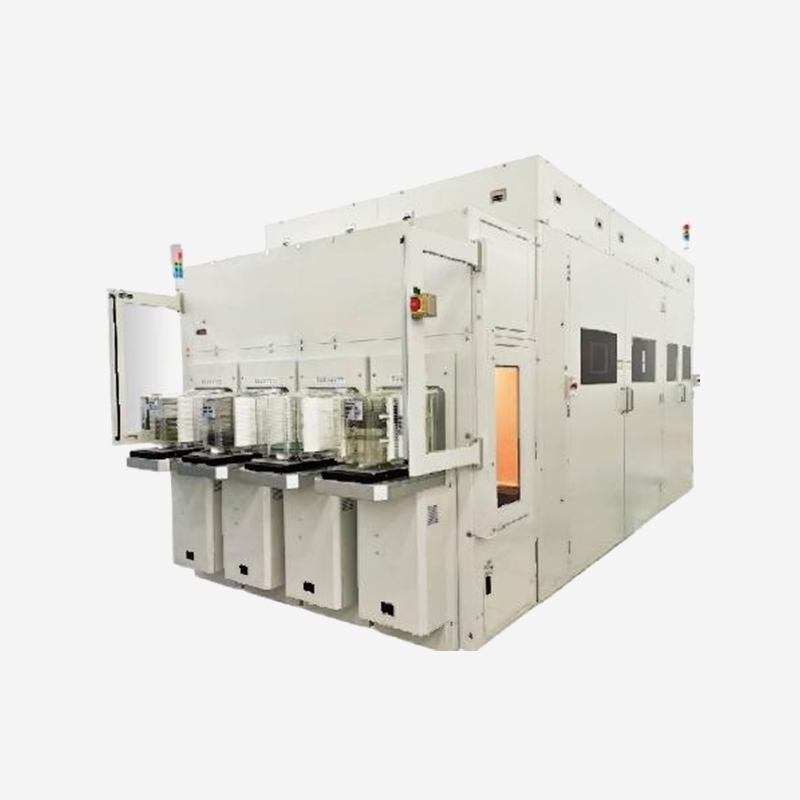

Is a wafer-to-wafer fusion bonding equipment. This equipment can efficiently achieve non-electrical connections between wafers, naturally bonding two flat wafers together. Its key feature is that the wafers undergo hydrophilic treatment after cleaning and bond with each other at room temperature upon contact. FB UMA®wafer-to-wafer fusion bonding products can be used for low-stress fusion bonding of carrier wafers and device wafers, offering excellent production efficiency.
Features
● Meet SEMI S2,F47 Standards
● High Precision Alignment
● Fully Automated EFEM
● Edge Alignment Method
● High Precision Wafer Transfer System
● He Purge
● Low-Temperature Plasma Activation
● Bonding wave monitor
● Cleaning Unit
● Pre-bonding at Room Temperature
Specifications
|
Description |
Specifications |
|
Machine Series |
FB UMA®300 |
|
Substrate Diameter |
300mm |
|
Edge Alignment |
≤3um(3σ) |
|
Bonding Misalignment |
X/Y Within±15um |
|
Bond Distortion |
≤10nm(3σ) |
|
Post Litho Residual |
≤5nm(3σ) |
|
Throughput |
≥60WPH |
|
Environmental Control System |
IOS Class 1(partial) |
