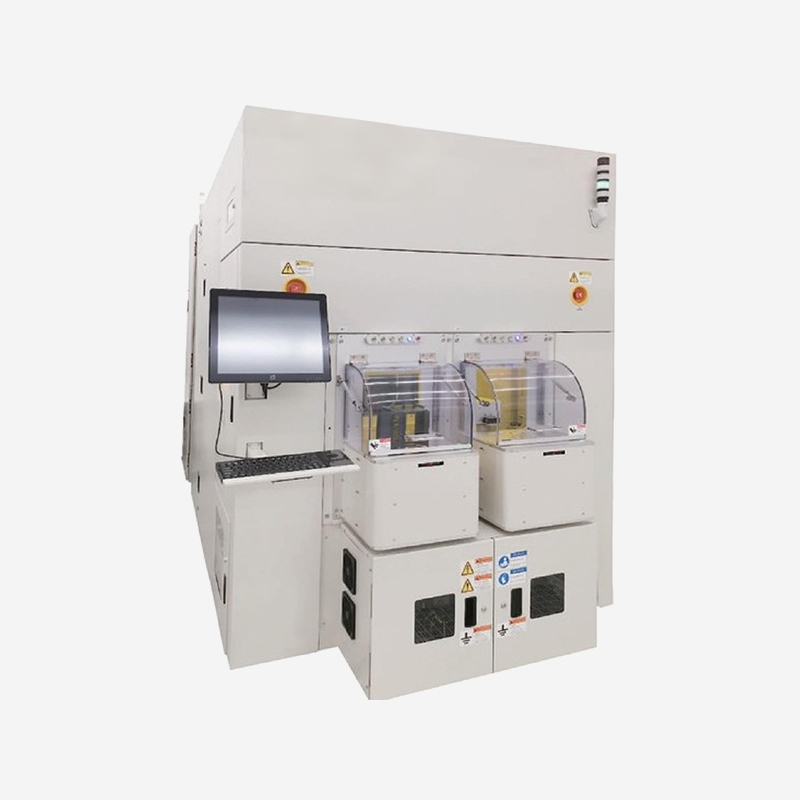

For Silicon device backside implantation activation
UPLD systems provide precise and reliable transferring for ultra-thin and large-warped wafers, with unique IR annealing technology, deep activation for a thinner and deeper annealing process of IGBT power devices
Features
Reliable handling of ultra-thin and warped wafers
Higher than 90% annealing activation
Unique IR laser to activate deeper than7μm
Specifications
| Wafer size | 150mm/200mm/300mm |
| Wafer thickness |
≥50 μm for Taiko wafer ≥70 μm for Flat wafer |
| Annealing depth | Up to 7μm |
