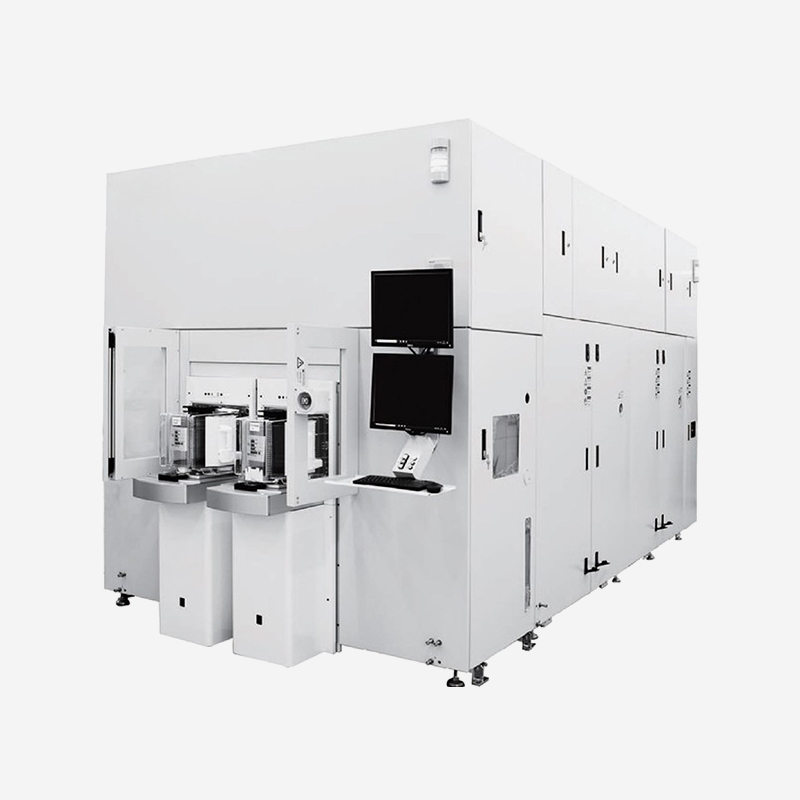

For backside ohmic contact annealing for SiC device
UP-SCLA02 systems, with the most advanced 8 inch SiC process, provide accurate positioning and reliable handling for ultra-thin wafers,large-warped wafers, and bonded wafers. Precise oxygen content control chamber solves the by-product problem efficiently.
Features
Flexible UV /green loser wavelength configuration
Compatible with 6/8-inch SiC wafers
Reliable ultra-thin, warped, and bonded wafer handling
Process chamber oxygen content control<10ppm
Specifications
| Wafer size | 150/200mm |
| Wafer thickness | ≥80um |
| Oxygen content control | <10ppm |
| Contact | Ohmic contact |
