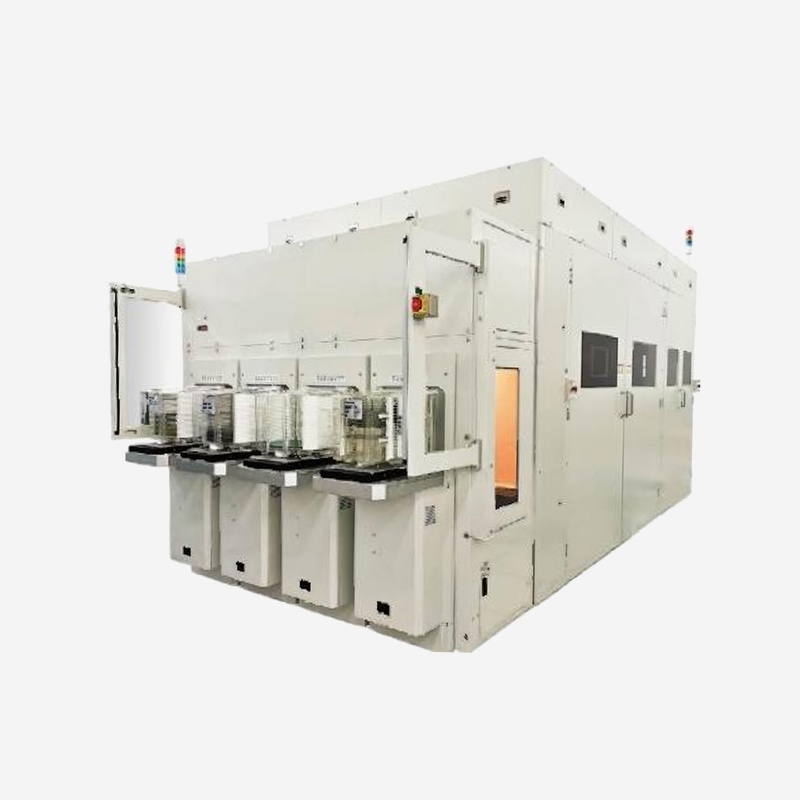

HB ORI@300/HB ORI®200 is a wafer hybrid bonding equipment ASSOCIATED developed by SUNFUN MACHINERY. It is used in the production of memory, logic, CIS,3D integrated chips, and Micro-LED.The equipment features units for plasma activation, cleaning, bonding, and measurement, with all performance indicators having reached the level of international counterparts.
Features
● Meet SEMI S2,F47 Standards
● Cleaning Unit
● AVM Unit
● Fully Automated EFEM
● High Precision Alignment
● Edge-Gripper type Debonding
● High Precision Wafer Transfer System
● Face-to-Face Alignment Method
● He Purge
● Low-Temperature Plasma Activation
● Pre-bonding at Room Temperature
Specifications
|
Description |
Specifications |
|
Machine Series |
HB ORIO200/HB ORIO300 |
|
Substrate Diameter |
200mm/300mm |
|
Alignment Accuracy |
≤50nm(3σ) |
|
Bonding Misalignment |
≤200nm(3σ) |
|
Bond Distortion |
≤70nm |
|
Post Litho Residual |
≤50nm(3σ) |
|
Throughput |
≥17WPH |
|
Environmental Control System |
IOS Class 1(partial) |
