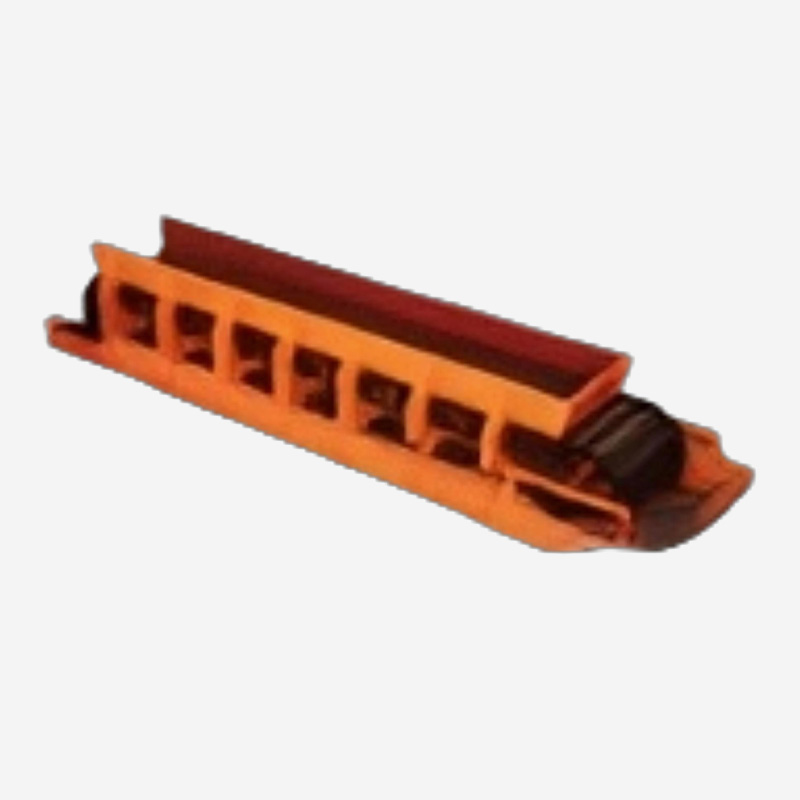

The plate feeder is a bulk material conveying equipment that converts intermittent feeding into continuous feeding. Our company has introduced foreign technology to develop the BW and BZ series plate feeders, which are suitable for harsh environments and have strong material adaptability. They are often placed under large hoppers and are used for short-distance continuous conveying of large-volume materials to crushing equipment, and are widely applied in mining, metallurgy and other fields.

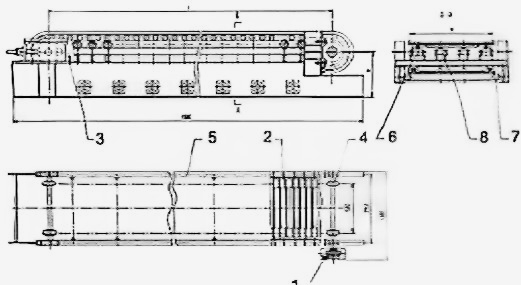

Main component names
|
1. transmission device |
2. Operating device |
3. Tail Device |
|
4. Headgear |
5. Rack |
6. Idler wheel of track chain |
|
7. Traction sprocket |
8. Intermediate supporting wheels |
Product Features BW Type
● The tail end is equipped with sleepers for vibration absorption, and the middle part is supported by vibration-absorbing idlers, which increases the service life of the running components.
● Replaceable gears for easy maintenance.
● It has strong traction, low sand leakage and smooth operation.
BZ Type
● Standard dry track chain, self-lubricating, easy to install and maintain.
● The key connection parts are joined by sleeves and lock plates, which do not damage the shaft diameter and are easy to disassemble and assemble. The slot plate is of a stamped and welded structure with strong load-bearing capacity.
● The drive unit adopts a suspended single-point floating support to reduce the radial installation size.
