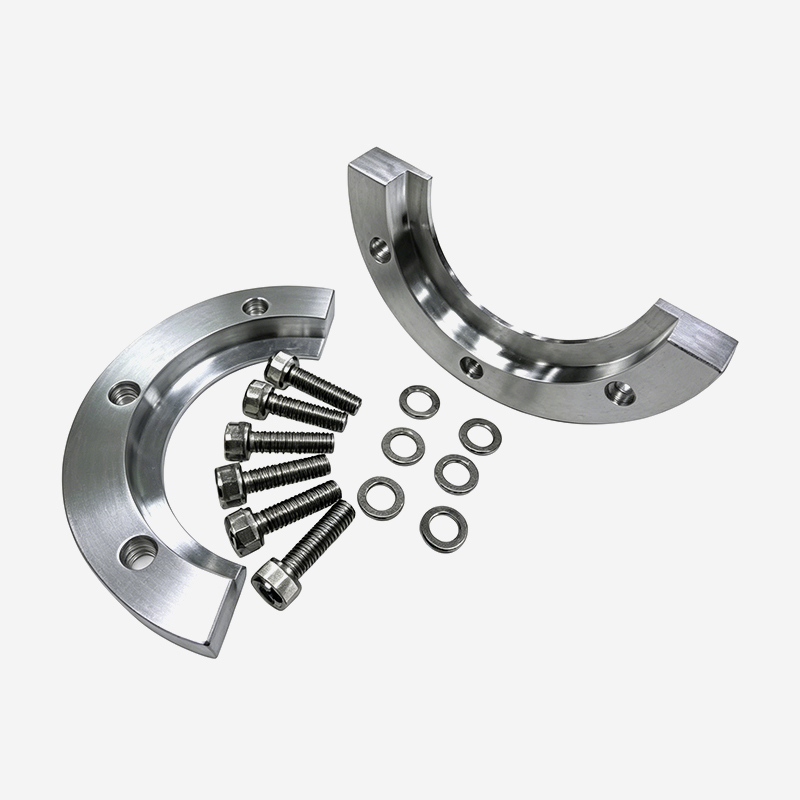

Aluminum half-moon clamps are applied to fix KF flanges in vacuum systems.
This product fits base plates or smooth walls equipped with six or eight #10-32UNF (or M5×16L) threaded mounting holes.
The clamps align with standard KF sealing assemblies consisting of a KF flange and an O-ring fitted centering ring, and are fastened to the matching bolt holes to form a vacuum seal between connected parts.
Standard sizes of the half-moon clamps cover KF10, KF16, KF25, KF40 and KF50.

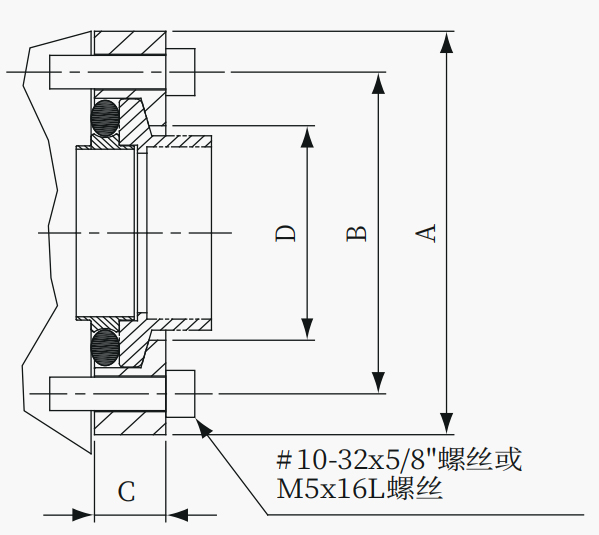

| Model | Material | A | B | C | D | Bolt Size * Quantity | Part No. |
| NW-16-BCP | A6061-T6 | 50.8 | 38.1 | 9.17 | 22.86 | #10-32x5/8"L*6 | ZCP006A0220100 |
| NW-25-BCP | A6061-T6 | 60.2 | 48.01 | 9.83 | 32 | #10-32x5/8"L*6 | ZCP006A0220200 |
| NW-40-BCP | A6061-T6 | 74.68 | 61.98 | 9.3 | 46.22 | #10-32x5/8"L*6 | ZCP006A0220300 |
| NW-50-BCP | A6061-T6 | 95.25 | 82.6 | 10.26 | 59.69 | #10-32x5/8"L*8 | ZCP006A0220400 |
| NW-16-BCP-M | A6061-T6 | 50.8 | 38.1 | 9.17 | 22.86 | M5x16L*6 | ZCP274A0060100 |
| NW-25-BCP-M | A6061-T6 | 60.2 | 48.01 | 9.83 | 32 | M5x16L*6 | ZCP274A0060200 |
| NW-40-BCP-M | A6061-T6 | 74.68 | 61.98 | 9.3 | 46.22 | M5x16L*6 | XCB069A0150300 |
| NW-50-BCP-M | A6061-T6 | 95.25 | 82.6 | 10.26 | 59.69 | M5x16L*8 | ZCP274A0060300 |
Part numbers in the table exclude bolts.
