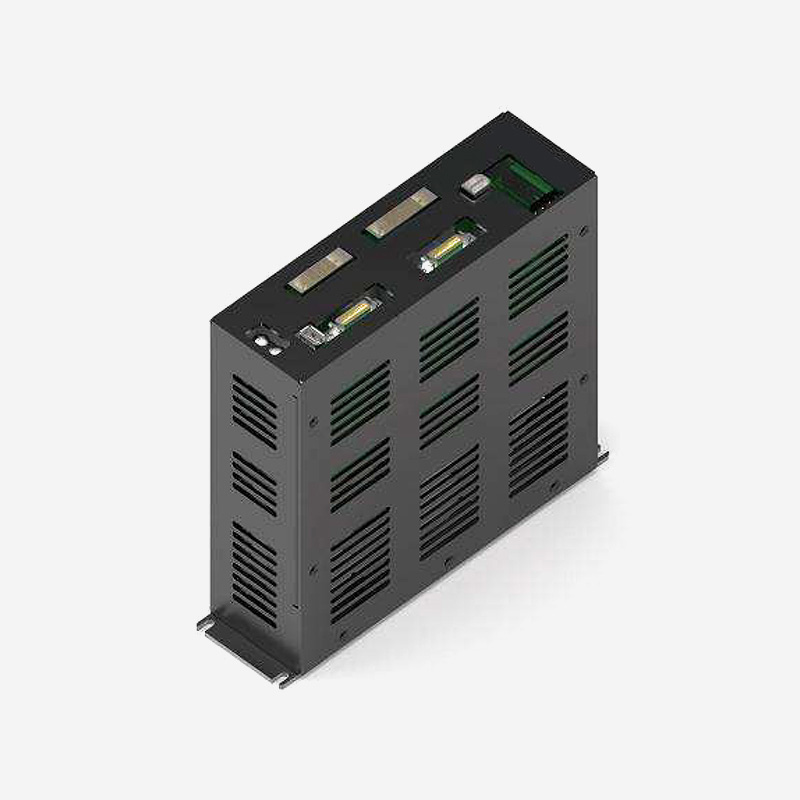

Key Features
● Capable of controlling various permanent magnet motors such as linear/rotary motors
● Simultaneously supports digital, analog, and absolute feedback
● Dual closed‑loop control, can connect a second encoder
● Supports rigid and flexible gantry synchronous dual‑drive systems
● Supports multiple control methods such as pulse, analog, bus
● Supports auto‑tuning and frequency sweep analysis for easy use
● Adaptive nonlinear algorithm, extremely short tuning time and low static jitter
● Provides position compare output function
● Supports 1D error correction compensation
● Self‑explanatory human‑machine interface, simple debugging
| Input power | 220V |
| Rated current | 10A |
| Peak current | 20A |
| Output power | 800W |
| Power-off brake | built-in |
| Built-in resistor | 40Ω/60W |
| Motor interface P1 | |
| 1 | PE |
| 2 | U |
| 3 | V |
| 4 | W |
| Logic power interface P2 | |
| 1 | L1 |
| 2 | L2 |
| 3 | L1C |
| 4 | L2C |
| Gantry communication interface C1 socket type: LZ4R-2.54 | ||
| 7 | Serial data Tx+ | Twisted pair |
| 8 | Serial data Tx- | |
| 9 | Serial data Rx+ | |
| 10 | Serial data Rx- | |
| Control interface C2 Connector type SCSI 36pin | |||||
| 1 | Common Input | 13 | GND | 25 | GND |
| 2 | Digital Output 1 | 14 | Digital Input 4 | 26 | Analog Input 1- |
| 3 | Digital Input 1 | 15 | Fast Digital Input 6 | 27 | Direction Input- |
| 4 | Equivalent Encoder Output A- | 16 | Digital Output 3 | 28 | Pulse Input+ |
| 5 | Equivalent Encoder Output B- | 17 | 29 | AGND | |
| 6 | Equivalent Encoder Output Z- | 18 | Analog Input 2+ | 30 | |
| 7 | 19 | Common Input | 31 | Digital Input 3 | |
| 8 | Analog Input 1+ | 20 | Digital Input 2 | 32 | Fast Digital Input 5 |
| 9 | Direction Input+ | 21 | 33 | Digital Output 2 | |
| 10 | GND | 22 | Equivalent Encoder Output A+ | 34 | |
| 11 | Pulse Input- | 23 | Equivalent Encoder Output B+ | 35 | Analog Input 2- |
| 12 | 24 | Equivalent Encoder Output Z+ | 36 | ||
| Feedback interface C4 Connector type SCSI 26pin | |||
| 1 | Primary Encoder A+/DATA+ | 14 | Primary Encoder A-/DATA- |
| 2 | Primary Encoder B+/CLOCK+ | 15 | Primary Encoder B-/CLOCK- |
| 3 | Primary Encoder Z+ | 16 | Primary Encoder Z- |
| 4 | 17 | ||
| 5 | 18 | ||
| 6 | Secondary Encoder A+/DATA+ | 19 | Secondary Encoder A-/DATA- |
| 7 | Secondary Encoder B+/CLOCK+ | 20 | Secondary Encoder B-/CLOCK- |
| 8 | Secondary Encoder Z+ | 21 | Secondary Encoder Z- |
| 9 | Secondary Encoder 5V Power Supply | 22 | GND |
| 10 | 23 | ||
| 11 | Primary Encoder 5V Power Supply | 24 | GND |
| 12 | 25 | ||
| 13 | Primary Encoder 5V Power Supply | 26 | Shield |
