The total length of the cylinder is 5300mm*the width is 3294mm*the height is 6435mm. The total weight of the cylinder is 43800kg.
Product Overview

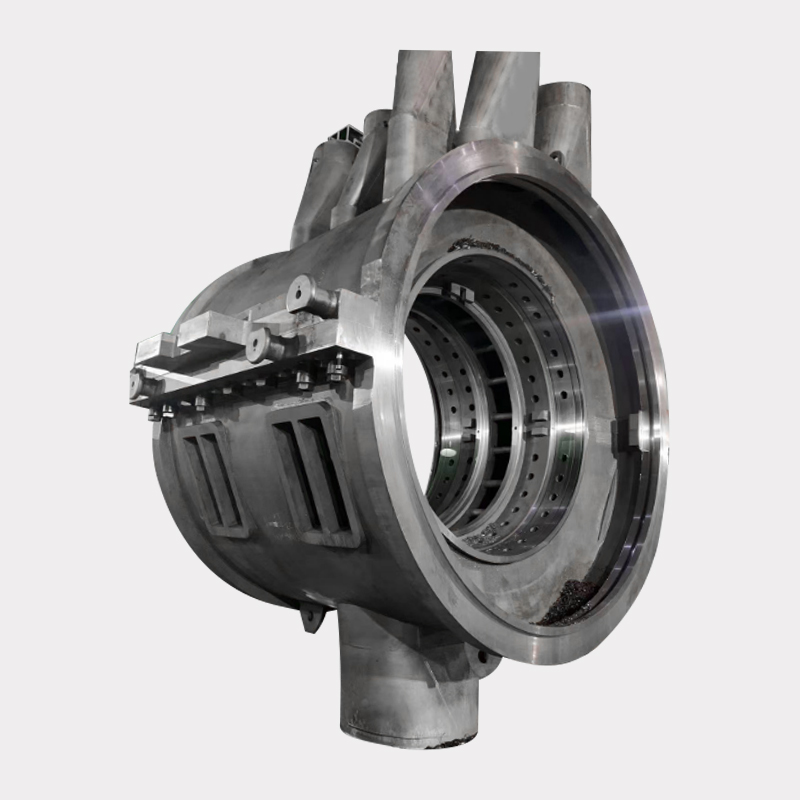

The H159 Middle Part of the Low-Pressure (LP) Inner Cylinder is a critical structural component of the steam turbine. Designed as a double-flow, double-layer cylinder, it features a specialized structural design separated from the horizontal plane. The component is manufactured using special material welding methods and high-precision machining to meet the rigorous demands of modern power generation and industrial propulsion.
Key Features and Advantages
● Advanced Material Integration: The use of specialized materials optimizes the temperature distribution of the cylinder, ensuring uniform deformation and enhanced operational safety.
● ● Superior Mechanical Properties: The structural design provides excellent shock absorption and vibration damping characteristics.
Enhanced Thermal Efficiency: Effectively addresses technical challenges such as high LP extraction temperatures and significant inlet steam pressure loss.
● Optimized Design: Reflects the latest technological trends in steam turbine development, balancing structural integrity with aerodynamic performance.
Technical Manufacturing & Quality Standards
The production process adheres to strict technical specifications to ensure reliability:
● Welding Standards: * Welding of the carbon steel cylinder body is performed in accordance with SQZ43.112 (covering arc welding, TIG welding, and metal arc welding).
● Post-weld heat treatment is strictly executed per SQZ43.143 technical specifications.
Inspection Protocols:
● Weld defect levels comply with ISO 5817-B and 5817-C.
● 100% Ultrasonic Testing (UT) is conducted according to SQB49.49 for welded joints.
● 100% Surface Defect Inspection is mandatory for all critical areas.
Machining Process:
● Processing follows the "Steam Turbine Metalworking Process Card."
● Utilizes CNC boring and milling, large-scale drilling, and vertical lathes for both rough and precision machining.
● Post-machining includes comprehensive cleaning and anti-rust treatment prior to final assembly.
Product Applications
As the core equipment for energy conversion, this LP inner cylinder is utilized across various sectors:
● Thermal Power Plants: Serves as a primary component in domestic power generation. It plays a vital role in meeting increasing electricity demands and providing peak frequency capacity to stabilize grids with high proportions of intermittent wind and solar energy.
● Industrial Drives: Utilized in large-scale models to drive industrial equipment, including large fans, water pumps, and compressors.
● Marine Propulsion: Employed on ships to drive propellers and provide primary propulsion power.
