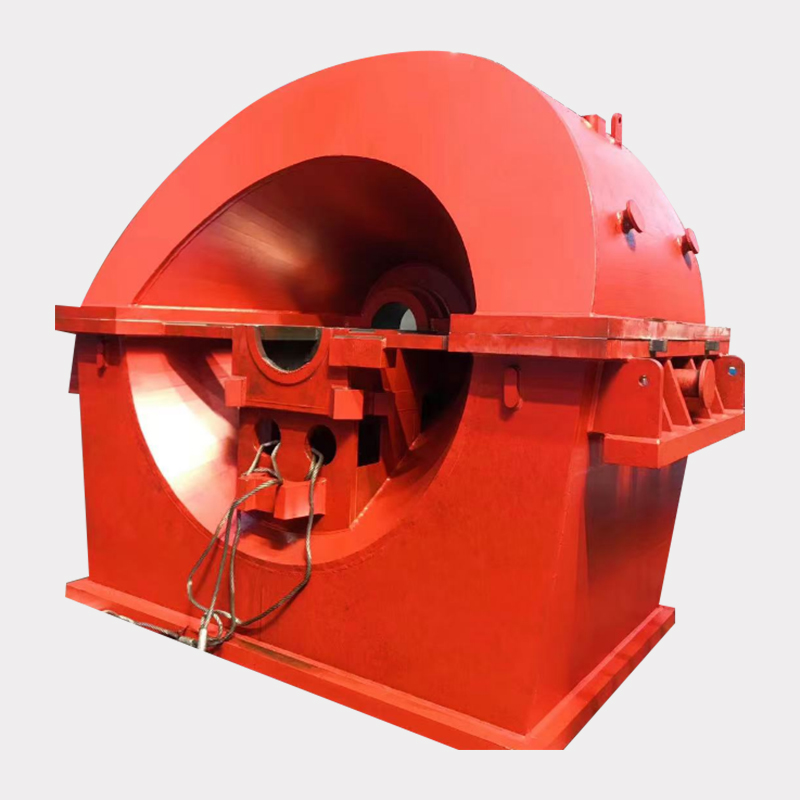

Total weight of the cylinder: 16072Kg Length: 4210mm*Width: 4340mm*Height: 3130mm
Product Overview
The 2A32 Rear Cylinder is a critical structural component of a steam turbine, engineered for high-performance energy conversion. Its architecture is primarily integrated through the following components:
● Exhaust Volute
● Horizontal Center Face Flange
● Exhaust Port Flange
● Bearing Seat
The cylinder body is constructed using high-quality carbon steel, utilizing advanced welding techniques including arc welding, tungsten inert gas (TIG) shielded welding, and metal arc welding in accordance with SQZ43.112 standards.
Technical Manufacturing & Quality Control
● The production of the 2A32 Rear Cylinder follows a rigorous technical process to ensure structural integrity and dimensional precision:
● Welding Standards: Weld inspection defect levels adhere strictly to ISO 5817-B and 5817-C.
● Non-Destructive Testing (NDT): * 100% Ultrasonic Testing (UT) conducted per SQB49.49 for welded joints.
● 100% Surface Defect Inspection to ensure external structural reliability.
● Heat Treatment: Post-weld heat treatment (PWHT) is executed according to SQZ43.143 (Technical Specifications for Purchasing of Welded Inner Cylinders and Exhaust Cylinders of Low-Pressure Parts).
● Machining Process: Rough and fine processing are managed via a distributed workflow including CNC boring and milling, large-scale drilling, vertical lathes, and benchwork.
● Finalization: Post-processing includes comprehensive cleaning and rust-proofing prior to final assembly.
Key Advantages & Strategic Importance
● As a core component of thermal power units, the 2A32 Rear Cylinder offers significant advantages within the current energy landscape:
● Proven Reliability: Benefits from mature technology and a relatively short construction period.
● Economic Efficiency: Compatible with systems utilizing abundant and cost-effective combustibles.
● Grid Stability Support: Essential for providing peak frequency capacity. As the proportion of volatile wind and solar energy increases, these flexible thermal power units are indispensable for maintaining power system stability.
● Versatility: Capable of meeting the sustained electricity demand brought by economic growth.
Product Applications
● The 2A32 Rear Cylinder is designed for versatile use across multiple industrial sectors:
● Thermal Power Generation: Serving as the core equipment for thermal power plants, the primary method of domestic power generation.
● Industrial Drive Systems: Depending on model size, it is utilized to drive large-scale industrial machinery, including:
● Large Fans
● Water Pumps
● Compressors
● Marine Propulsion: Applied on ships to drive propellers and provide primary propulsion power.
