Performance Parameters
● Operating Temperature Range:
High temperature resistance: 400°C (Open), 300°C (Closed)
● Low temperature: -200°C
● Pressure Range: 1×10⁻¹⁰ mbar~1000 mbar
● All stainless steel structure
● Bellows stem seal
● Leak Rate: 5×10⁻¹⁰ mbar·L/sec
● Closing Torque:
CR35: Initial 300kg-cm, Max 600kg-cm
CR63: Initial 300kg-cm, Max 900kg-cm
● Installation Direction: Any position
|

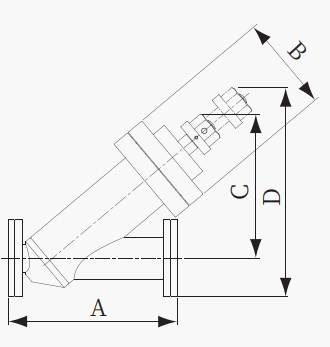

Model |
A |
B |
C |
D |
O.D. |
Part No. |
|
STVBAK-CR35 |
152.4 |
86 |
125 |
184 |
38.1 / 25.4 |
307513030011 |
|
STVBAK-CR63 |
228.6 |
113.6 |
165 |
247 |
60.5 / 34 |
307515030011 |
