Specifications
● Sensor Power Supply: 24VDC or ±15VDC
● Backup Power Supply: Available
● Sensor Input
● Quantity of Sensors: 2
● Signal Voltage: 0-10VDC, proportional to pressure value
● Input Resistance: Ri=47kΩ
● Resolution: 2.3mV
● Sampling Rate: 1ms
● Control Accuracy: 0.1% of full sensor scale range
● Position Resolution: 8000 steps (0-90° rotation stepping)
|

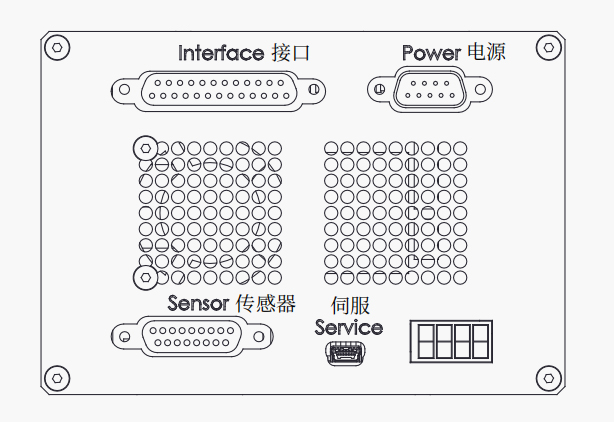

Category |
Connection Method |
Connector Type |
|
Power |
Power Input |
DB-9 Male Connector |
|
Sensor |
Sensor Input / Sensor Power Supply |
DB-15 Female Connector |
|
Interface |
RS232, RS485 |
DB-25 Female Connector |
|
Service |
APC Service |
Mini USB Type B Female Connector |
