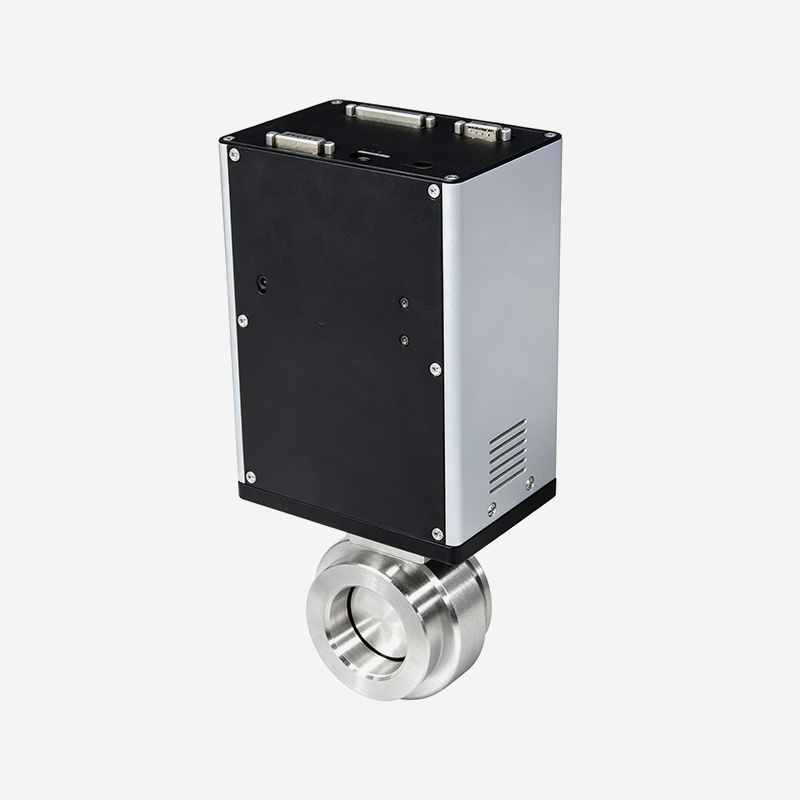

Performance Parameters
● Valve Size: 1-1/2"(38.1mm), 2"(50.8mm)
● Flange Type: ISO-KF
● Pressure Range: 10⁻² mbar to 1.2 bar
● Max Pressure Differential When Open: KF40, KF50 ＞1.0 bar
● Leak Rate (Valve Body & Disc): 1×10⁻⁹ mbar·L/s
● Cycles Before First Maintenance:
Pressure control: over 2,000,000 cycles
Open & close operation: 250,000 cycles
● Material of Valve Body, Disc and Shaft: SUS304
● Seal Material: Viton
● Mounting Position: Universal
● Position Control: Multi-position control (0°~90°)
● Typical Opening/Closing Time: 0.85s
● Temperature Range: Actuator ≤50°C, Valve body ≤120°C
|

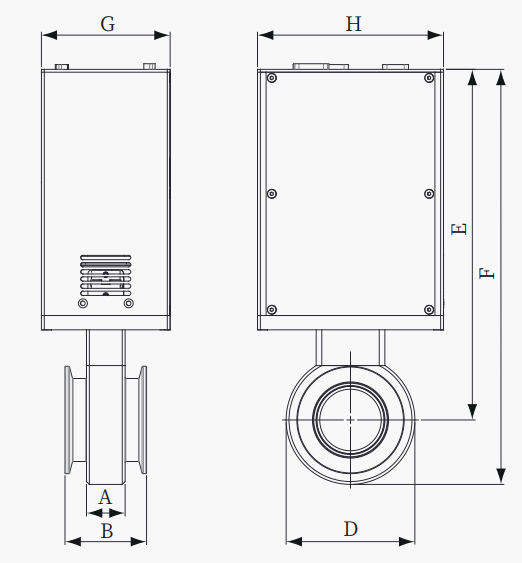

Model |
A |
B |
D |
E |
F |
G |
H |
Part No. |
|
KF40BFVC |
27 |
57 |
80 |
239.5 |
279.5 |
90 |
130 |
3202131101214 |
|
KF50BFVC |
27 |
57 |
90 |
245 |
290 |
90 |
130 |
3202141101214 |
